AIRCAT Pneumatic Tools AC1300TH

AIRCAT Pneumatic Tools Logo

AIRCAT Pneumatic Tools AC1300TH

This tool is unavailable for purchase, but replacement parts may be available below.
3/8" Drive Air Impact Wrench w/Older Style Internal Reverse Lever

Replacement Parts

Details

Accessories

Warranty & Documentation

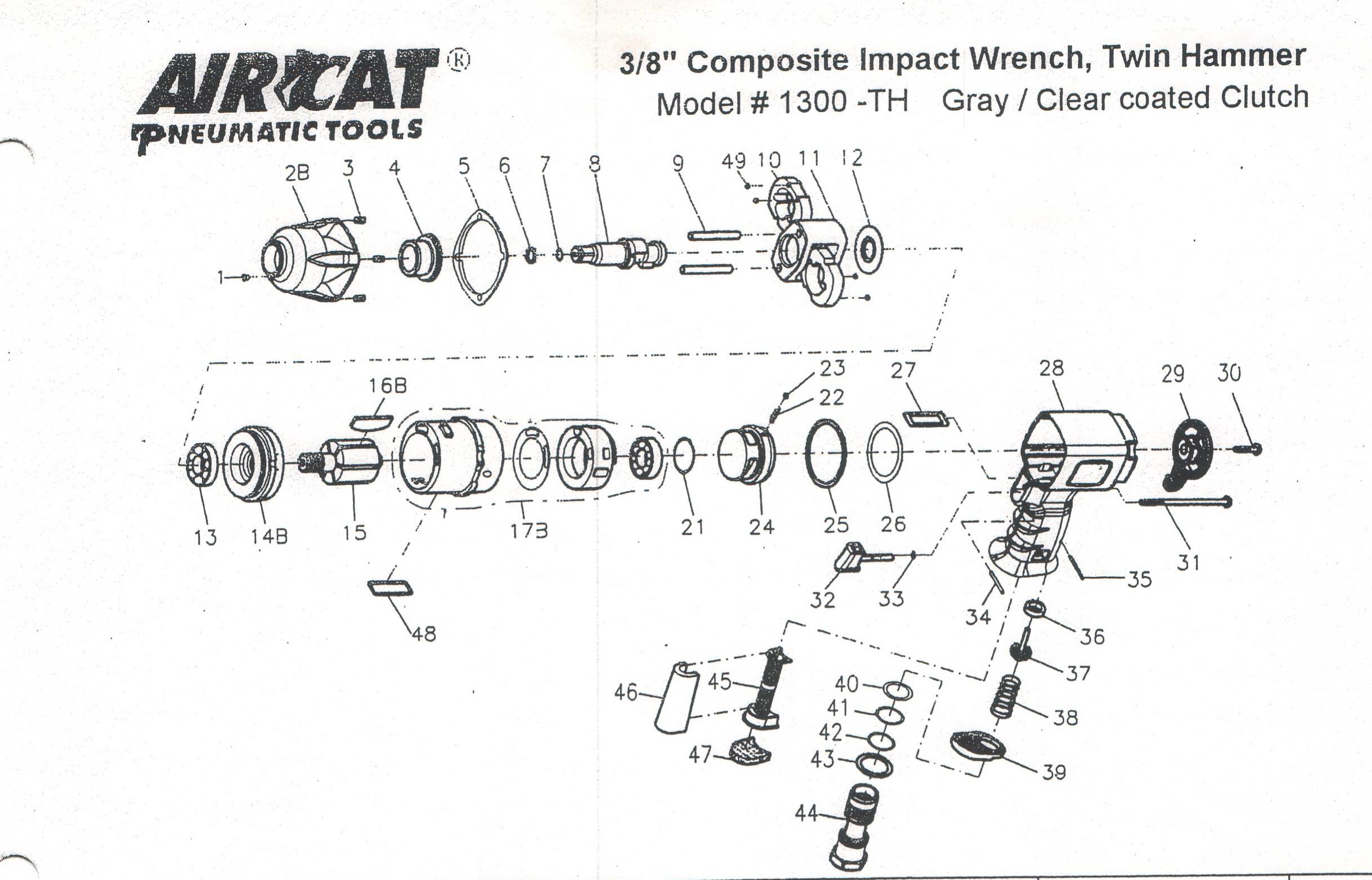

Line Drawing
Ref #PartPrice
1
HAMMER CASE - (GROOVES, SHORT)
$31.05
In Stock (Only 1 left)
2
INSERTS RECOIL
$2.04
Out of Stock
3
GREASE FITTING
$1.34
In Stock (Only 2 left)
4
ANVIL BUSHING
$9.87
Out of Stock
5
FRONT GASKET
$1.22
In Stock (Only 1 left)
6
ANVIL CLIP 3/8"
$1.22
Out of Stock
7
O-RING
$1.22
Out of Stock
8
3/8" ANVIL
$51.20
Out of Stock
8
1/2" ANVIL
$38.59
In Stock (Only 1 left)
9
HAMMER PIN
$1.34
Out of Stock
10
HAMMER
$19.74
In Stock (Only 1 left)
11
HAMMER CAGE
$41.27
Out of Stock
12
REAR WASHER
$1.80
Out of Stock
13
BEARING
$5.38
Out of Stock
14
FRONT END PLATE
$14.36
Out of Stock
15
ROTOR
$21.09
Out of Stock
17
CYLINDER
$88.39
Out of Stock
16
ROTOR BLADE (SINGLE)
$2.36
In Stock
20
BALL BEARING
$18.12
Out of Stock
21
O-RING - 3/8" REVERSE VALVE
$1.34
Out of Stock
22
SPRING PIN
$3.30
Out of Stock
23
STEEL BALL
$1.22
Out of Stock
24
SPRING
$1.22
Out of Stock
25
REVERSE VALVE
$15.14
In Stock (Only 1 left)
26
REAR GASKET 1300/1355
$1.22
In Stock
27
SPACER/WASHER 1300/1355
$1.80
In Stock (Only 1 left)
28
AIR CHANNEL GASKET
$1.22
Out of Stock
29
HOUSING
$43.75
Out of Stock
30
SCREW
$1.34
Out of Stock
31
SPRING PIN
$1.22
Out of Stock
32
BUSHING
$2.12
In Stock
33
VALVE STEM
$1.80
In Stock (Only 2 left)
34
SPRING
$1.22
In Stock (Only 2 left)
35
EXHAUST DEFLECTOR
$1.34
Out of Stock
36
SPRING PIN
$1.22
Out of Stock
37
TRIGGER
$2.70
In Stock (Only 1 left)
38
O-RING 4338/4450
$3.02
Out of Stock
39
O-RING
$1.22
Out of Stock
40
WASHER
$1.80
Out of Stock
41
AIR INLET
$10.32
Out of Stock
42
O-RING
$1.22
In Stock (Only 7 left)
43
O-RING
$1.22
Out of Stock
44
MUFFLER TUBE
$1.34
Out of Stock
45
MUFFLER
$1.34
Out of Stock
46
MUFFLER
$1.22
In Stock (Only 1 left)
***
TUNE-UP KIT
$33.65
Out of Stock
Model #AC1300TH
BrandAIRCAT Pneumatic Tools
Tool Type3/8" Impact Wrench
Powered ByAir
Weight3 lbs. / 1.36 kg

Warranty

Power Tool Repair is authorized to repair this tool under warranty.

Warranty Duration: 2 Years

Documentation

Breakdown

Replacement Parts
Line Drawing
Ref #PartPrice
1
HAMMER CASE - (GROOVES, SHORT)
$31.05
In Stock (Only 1 left)
2
INSERTS RECOIL
$2.04
Out of Stock
3
GREASE FITTING
$1.34
In Stock (Only 2 left)
4
ANVIL BUSHING
$9.87
Out of Stock
5
FRONT GASKET
$1.22
In Stock (Only 1 left)
6
ANVIL CLIP 3/8"
$1.22
Out of Stock
7
O-RING
$1.22
Out of Stock
8
3/8" ANVIL
$51.20
Out of Stock
8
1/2" ANVIL
$38.59
In Stock (Only 1 left)
9
HAMMER PIN
$1.34
Out of Stock
10
HAMMER
$19.74
In Stock (Only 1 left)
11
HAMMER CAGE
$41.27
Out of Stock
12
REAR WASHER
$1.80
Out of Stock
13
BEARING
$5.38
Out of Stock
14
FRONT END PLATE
$14.36
Out of Stock
15
ROTOR
$21.09
Out of Stock
17
CYLINDER
$88.39
Out of Stock
16
ROTOR BLADE (SINGLE)
$2.36
In Stock
20
BALL BEARING
$18.12
Out of Stock
21
O-RING - 3/8" REVERSE VALVE
$1.34
Out of Stock
22
SPRING PIN
$3.30
Out of Stock
23
STEEL BALL
$1.22
Out of Stock
24
SPRING
$1.22
Out of Stock
25
REVERSE VALVE
$15.14
In Stock (Only 1 left)
26
REAR GASKET 1300/1355
$1.22
In Stock
27
SPACER/WASHER 1300/1355
$1.80
In Stock (Only 1 left)
28
AIR CHANNEL GASKET
$1.22
Out of Stock
29
HOUSING
$43.75
Out of Stock
30
SCREW
$1.34
Out of Stock
31
SPRING PIN
$1.22
Out of Stock
32
BUSHING
$2.12
In Stock
33
VALVE STEM
$1.80
In Stock (Only 2 left)
34
SPRING
$1.22
In Stock (Only 2 left)
35
EXHAUST DEFLECTOR
$1.34
Out of Stock
36
SPRING PIN
$1.22
Out of Stock
37
TRIGGER
$2.70
In Stock (Only 1 left)
38
O-RING 4338/4450
$3.02
Out of Stock
39
O-RING
$1.22
Out of Stock
40
WASHER
$1.80
Out of Stock
41
AIR INLET
$10.32
Out of Stock
42
O-RING
$1.22
In Stock (Only 7 left)
43
O-RING
$1.22
Out of Stock
44
MUFFLER TUBE
$1.34
Out of Stock
45
MUFFLER
$1.34
Out of Stock
46
MUFFLER
$1.22
In Stock (Only 1 left)
***
TUNE-UP KIT
$33.65
Out of Stock
Details
Model #AC1300TH
BrandAIRCAT Pneumatic Tools
Tool Type3/8" Impact Wrench
Powered ByAir
Weight3 lbs. / 1.36 kg
Warranty & Documentation

Warranty

Power Tool Repair is authorized to repair this tool under warranty.

Warranty Duration: 2 Years

Documentation

Breakdown
