Ingersoll-Rand IR280S-6


Ingersoll-Rand IR280S-6

This tool is unavailable for purchase, but replacement parts may be available below.
1" Drive Air Impact Wrench

Replacement Parts

Details

Accessories

Warranty & Documentation

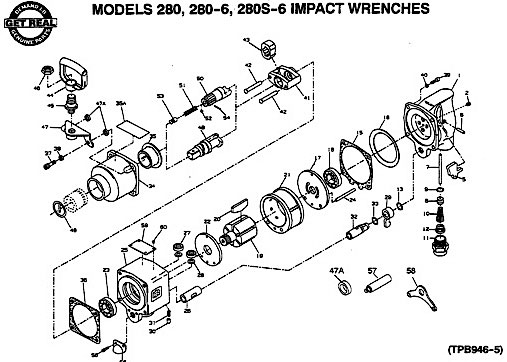

Line Drawing
Ref #PartPrice
1
HANDLE
$496.00
Out of Stock
2
FITTING
$5.80
Out of Stock
5
INSIDE TRIGGER
$20.55
Out of Stock
6
PIN
$3.25
In Stock (Only 4 left)
7
THROTTLE VALVE PLUNGER
$31.94
Out of Stock
8
THROTTLE VALVE ASSY
$120.80
Out of Stock
9
THROTTLE VALVE FACE
$3.94
Out of Stock
10
SPRING
$9.25
In Stock
11
STRAIGHT INLET
$67.72
Out of Stock
12
AIR STRAINER SCREEN
$7.42
In Stock (Only 1 left)
13
GASKET
$3.94
In Stock (Only 1 left)
15
HOUSING COVER GASKET
$10.33
Out of Stock
16
MOTOR CLAMP WASHER
$61.44
Out of Stock
17
REAR END PLATE
$211.41
Out of Stock
18
BEARING
$15.45
Out of Stock
19
ROTOR
$558.72
Out of Stock
20
ROTOR BLADES (SET OF 6)
$81.76
In Stock (Only 2 left)
21
CYLINDER
$554.08
Out of Stock
22
FRONT END PLATE
$204.44
In Stock (Only 1 left)
23
BEARING
$25.55
Out of Stock
24
CYLINDER DOWEL
$12.90
Out of Stock
25
HOUSING
$906.04
Out of Stock
26
REVERSE VALVE BUSH
$176.56
Out of Stock
27
AIR PORT GASKET
$7.68
In Stock
28
AIR PORT GASKET RET.
$3.94
In Stock
29
REVERSE LEVER
$20.55
Out of Stock
30
PLUNGER
$11.61
In Stock (Only 4 left)
31
SPRING
$1.25
In Stock
32
REVERSE VALVE ASSY
$190.50
Out of Stock
33
SEAL
$4.41
Out of Stock
34
HAMMER CASE ASSY
$649.33
Out of Stock
35
HAMMER CASE BUSHING
$41.00
Out of Stock
35A
LABEL
$5.22
Out of Stock
36
HAMMER CASE GASKET
$6.51
In Stock (Only 4 left)
37
SCREW (SET OF 4)
$14.29
Out of Stock
38
WASHER
$1.00
In Stock (Only 5 left)
39
SCREW
$1.32
Out of Stock
40
WASHER
$1.00
Out of Stock
41
HAMMER FRAME ASSY
$473.93
Out of Stock
42
HAMMER PIN
$42.16
Out of Stock
50
SPLINE DRIVE ANVIL - 6"
$571.50
Out of Stock
51
SPRING
$7.65
In Stock (Only 4 left)
52
BALL IND
$6.68
In Stock (Only 8 left)
53
RETAINING BALL PLUNGER
$94.54
Out of Stock
54
PLUNGER RETAINING PIN
$3.94
In Stock (Only 1 left)
Model #IR280S-6
BrandIngersoll-Rand
Tool Type1" Impact Wrench
Powered ByAir
Weight3 lbs. / 1.36 kg
We Service?
