Ingersoll-Rand IR7804

Ingersoll-Rand Logo

Ingersoll-Rand IR7804

This tool is unavailable for purchase, but replacement parts may be available below.
1/4" Air Drill

Replacement Parts

Details

Accessories

Warranty & Documentation

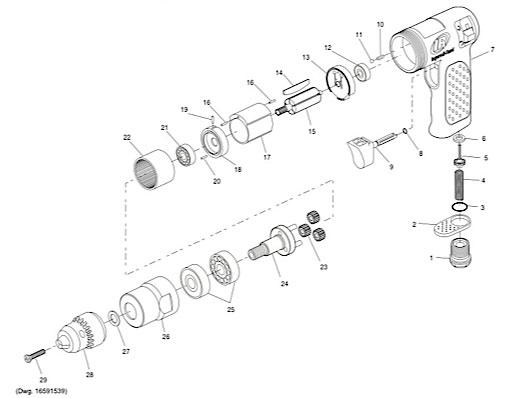

Line Drawing
Ref #PartPrice
1
INLET BUSHING w/SCREEN
$10.80
Out of Stock
2
DEFLECTOR
$4.41
Out of Stock
3
O-RING
$3.02
Out of Stock
4
VALVE SPRING
$3.64
In Stock (Only 3 left)
5
VALVE
$5.80
In Stock (Only 3 left)
6
VALVE SEAT
$5.80
In Stock (Only 3 left)
7
MINI 1/4" DRILL MOTOR
$102.62
Out of Stock
8
O-RING
$2.20
Out of Stock
9
TRIGGER
$7.50
In Stock (Only 2 left)
10
SPRING
$3.13
Out of Stock
11
STEEL BALL
$2.42
Out of Stock
12
BALL BEARING
$14.97
Out of Stock
13
REAR PLATE
$16.84
Out of Stock
14
ROTOR BLADES (SET OF 5)
$8.82
In Stock (Only 2 left)
15
ROTOR
$22.65
Out of Stock
16
ROLL PINS (SET OF 2)
$3.02
Out of Stock
17
CYLINDER
$31.01
Out of Stock
18
FRONT PLATE
$14.33
In Stock (Only 2 left)
19
ROLL PIN
$3.13
In Stock (Only 2 left)
20
PIN
$2.20
Out of Stock
21
BALL BEARING
$14.33
Out of Stock
22
INTERNAL GEAR
$5.43
Out of Stock
23
PLANET GEAR
$21.13
In Stock (Only 3 left)
24
SPINDLE
$28.54
In Stock (Only 1 left)
25
BALL BEARINGS (SET OF 2)
$21.49
Out of Stock
26
LOCK RING
$37.87
Out of Stock
27
CHUCK SPACER
$2.54
Out of Stock
28
1/4" DRILL CHUCK
$23.93
Out of Stock
28
CHUCK KEY
$3.02
Out of Stock
29
CHUCK SCREW
$2.54
Out of Stock
Model #IR7804
BrandIngersoll-Rand
Tool Type1/4" Drill
Powered ByAir
Weight2 lbs. / 0.91 kg
We Service?
Yes

Warranty

Power Tool Repair is authorized to repair this tool under warranty.

Warranty Duration: 1 Year

Documentation
