AIRCAT Pneumatic Tools AC5250-A-T


AIRCAT Pneumatic Tools AC5250-A-T

$545.00
$250.00
.401 Super Duty Air Hammer
Condition:
In Stock (Only 6 left)
Qty:
Features
  • 2,500 BPM
  • 3" Piston stroke
  • Includes Quick change chisel retainer
  • Variable speed trigger
  • 4 position built-in air regulator
Specifications
  • Free Speed (BPM): 2,500
  • Piston Stroke (in.): 3
  • Shank Opening (in.): 401
  • Retainer: Quick Change
  • Valve: Plate
  • Weight (lbs.): 5.38
  • Length (in.): 9.25
  • Air Cons. (CFM): 4.2
  • Rec. Hose Size (in.): 3/8
  • Air Inlet (in.) NPT/BSP: 1/4

Replacement Parts

Details

Accessories

Warranty & Documentation

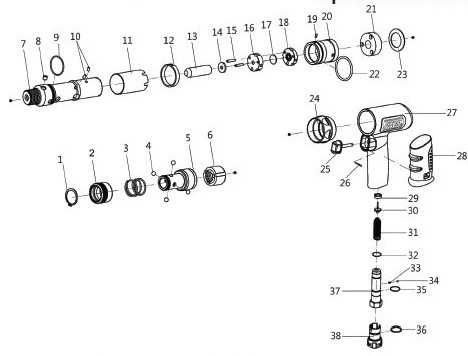

Line Drawing
Ref #PartPrice
1
RETAINER RING
$2.35
Out of Stock
2
RETAINING CHUCK SLEEVE
$45.71
Out of Stock
3
SPRING
$3.91
Out of Stock
4
STEEL BALL
$1.56
Out of Stock
5
RETAINING NOSEPIECE
$131.64
Out of Stock
6
POLYMER INSERT
$12.50
Out of Stock
7
CYLINDER
$269.53
Out of Stock
9
O-RING
$2.35
Out of Stock
10
PIN
$1.56
In Stock (Only 1 left)
11
EXHAUST DEFLECTOR SLEEVE
$70.31
Out of Stock
12
FRONT SHOCK ISOLATOR
$6.26
In Stock (Only 1 left)
13
PISTON
$37.11
Out of Stock
14
IMPACT WASHER
$6.26
Out of Stock
15
PIN
$1.50
In Stock (Only 3 left)
16
FRONT VALVE HALF
$37.11
Out of Stock
17
VALVE DISK
$1.95
Out of Stock
18
REAR VALVE HALF
$35.16
In Stock (Only 3 left)
19
PIN (3 x 7)
$1.56
Out of Stock
20
END CAP
$54.68
In Stock (Only 1 left)
21
REAR CUSHION
$10.94
In Stock (Only 1 left)
22
O-RING (38 x 2.5)
$2.73
In Stock (Only 1 left)
23
CLAMP WASHER
$8.21
In Stock (Only 1 left)
24
LOCK NUT
$76.17
Out of Stock
25
TRIGGER
$19.92
Out of Stock
26
SPRING PIN
$1.50
Out of Stock
27
MOTOR HOUSING
$203.51
Out of Stock
28
RUBBER GRIP
$25.39
Out of Stock
29
BUSHING
$2.35
Out of Stock
30
VALVE STEM
$7.85
In Stock (Only 1 left)
31
SPRING
$2.35
In Stock (Only 1 left)
32
O-RING
$1.56
Out of Stock
33
STEEL BALL
$1.80
Out of Stock
34
SPRING
$2.73
Out of Stock
35
O-RING
$2.24
Out of Stock
36
RUBBER O-RING
$1.50
Out of Stock
37
INLET BUSHING
$42.18
In Stock (Only 1 left)
38
REGULATOR INLET BUSHING
$21.09
Out of Stock
*
QUICK CHANGE RETAINER
$112.17
Out of Stock
Model #AC5250-A-T
BrandAIRCAT Pneumatic Tools
Tool TypeAir Hammer
Powered ByAir
Weight6 lbs. / 2.72 kg
We Service?
Yes
Submit Order

Warranty

Power Tool Repair is authorized to repair this tool under warranty.

Warranty Duration: 2 Years

Documentation

Breakdown

Replacement Parts
Line Drawing
Ref #PartPrice
1
RETAINER RING
$2.35
Out of Stock
2
RETAINING CHUCK SLEEVE
$45.71
Out of Stock
3
SPRING
$3.91
Out of Stock
4
STEEL BALL
$1.56
Out of Stock
5
RETAINING NOSEPIECE
$131.64
Out of Stock
6
POLYMER INSERT
$12.50
Out of Stock
7
CYLINDER
$269.53
Out of Stock
9
O-RING
$2.35
Out of Stock
10
PIN
$1.56
In Stock (Only 1 left)
11
EXHAUST DEFLECTOR SLEEVE
$70.31
Out of Stock
12
FRONT SHOCK ISOLATOR
$6.26
In Stock (Only 1 left)
13
PISTON
$37.11
Out of Stock
14
IMPACT WASHER
$6.26
Out of Stock
15
PIN
$1.50
In Stock (Only 3 left)
16
FRONT VALVE HALF
$37.11
Out of Stock
17
VALVE DISK
$1.95
Out of Stock
18
REAR VALVE HALF
$35.16
In Stock (Only 3 left)
19
PIN (3 x 7)
$1.56
Out of Stock
20
END CAP
$54.68
In Stock (Only 1 left)
21
REAR CUSHION
$10.94
In Stock (Only 1 left)
22
O-RING (38 x 2.5)
$2.73
In Stock (Only 1 left)
23
CLAMP WASHER
$8.21
In Stock (Only 1 left)
24
LOCK NUT
$76.17
Out of Stock
25
TRIGGER
$19.92
Out of Stock
26
SPRING PIN
$1.50
Out of Stock
27
MOTOR HOUSING
$203.51
Out of Stock
28
RUBBER GRIP
$25.39
Out of Stock
29
BUSHING
$2.35
Out of Stock
30
VALVE STEM
$7.85
In Stock (Only 1 left)
31
SPRING
$2.35
In Stock (Only 1 left)
32
O-RING
$1.56
Out of Stock
33
STEEL BALL
$1.80
Out of Stock
34
SPRING
$2.73
Out of Stock
35
O-RING
$2.24
Out of Stock
36
RUBBER O-RING
$1.50
Out of Stock
37
INLET BUSHING
$42.18
In Stock (Only 1 left)
38
REGULATOR INLET BUSHING
$21.09
Out of Stock
*
QUICK CHANGE RETAINER
$112.17
Out of Stock
Details
Model #AC5250-A-T
BrandAIRCAT Pneumatic Tools
Tool TypeAir Hammer
Powered ByAir
Weight6 lbs. / 2.72 kg
We Service?
Yes
Submit Order
Warranty & Documentation

Warranty

Power Tool Repair is authorized to repair this tool under warranty.

Warranty Duration: 2 Years

Documentation

Breakdown
