Snap-on AT154R
Snap-on AT154R
This tool is unavailable for purchase, but replacement parts may be available below.
4" Reversible Air Cutter
This tool is similar to CAT850XLR-old.
This product has been discontinued with limited quantity available.

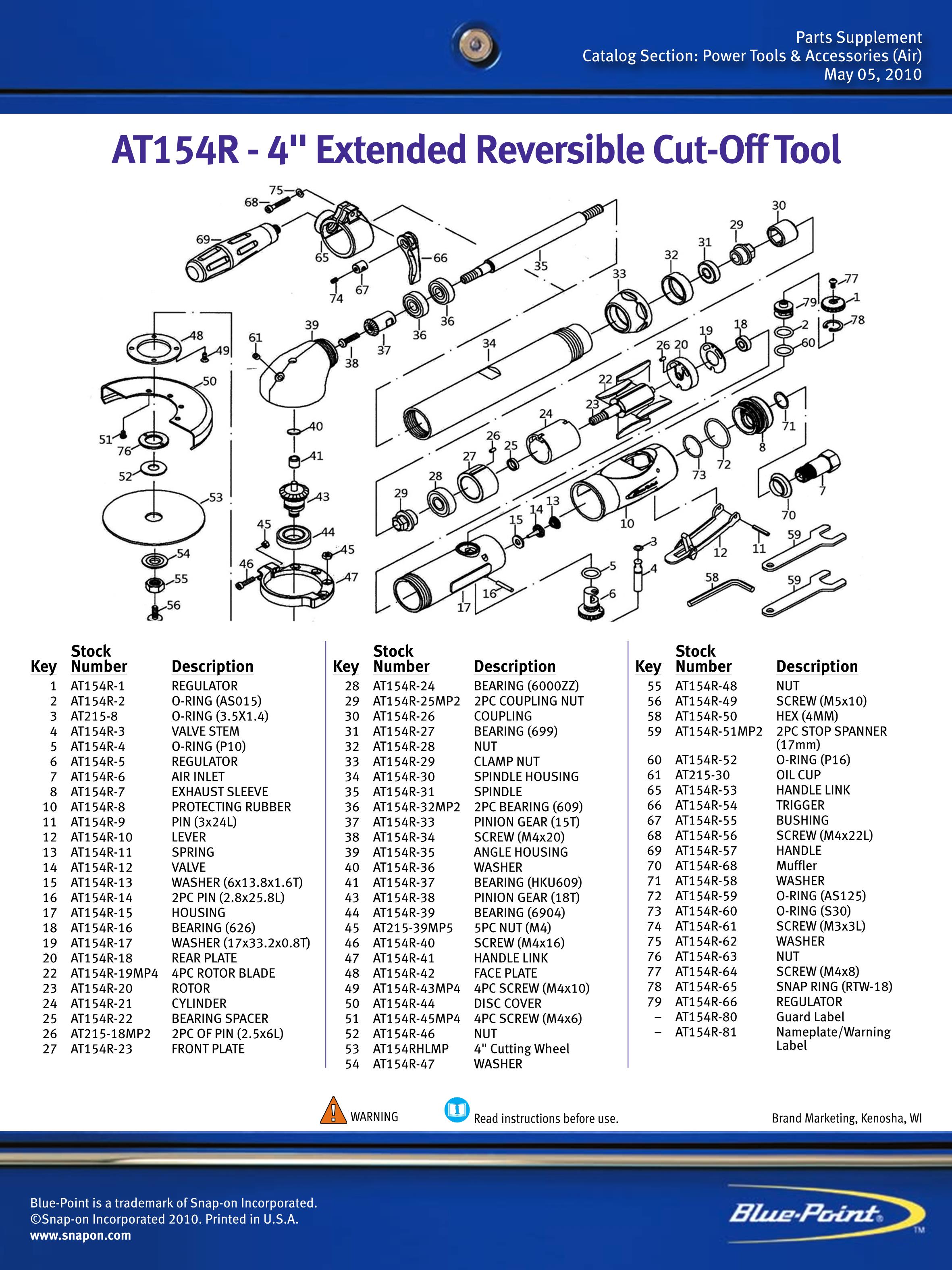

Replacement Parts
Details
Accessories
Warranty & Documentation
| Ref # | Part | Price |
|---|---|---|
1 | REGULATOR (FORWARD/REVERSE KNOB) | $5.40 |
Out of Stock | ||
2 | RUBBER O-RING | $1.57 |
In Stock | ||
3 | O-RING | $2.46 |
Out of Stock | ||
4 | THROTTLE STEM | $4.00 |
Out of Stock | ||
5 | O-RING (P10) | $2.57 |
Out of Stock | ||
6 | REGULATOR FOR CUT-OFF TOOL | $4.00 |
In Stock (Only 2 left) | ||
7 | AIR INLET | $4.00 |
Out of Stock | ||
8 | EXHAUST SLEEVE/MUFFLER F/CAT850XLR CUTOFF TOOL/DIE GRINDER | $4.00 |
Out of Stock | ||
10 | RUBBER GRIP/PROTECTING RUBBER | $10.80 |
Out of Stock | ||
11 | PIN | $4.00 |
Out of Stock | ||
12 | SAFETY THROTTLE LEVER | $7.80 |
In Stock (Only 2 left) | ||
13 | SPRING | $4.00 |
Out of Stock | ||
14 | THROTTLE VALVE | $4.00 |
Out of Stock | ||
15 | THROTTLE SEAT | $4.00 |
In Stock | ||
17 | HOUSING | $23.30 |
Out of Stock | ||
18 | BALL BEARING | $4.95 |
In Stock | ||
19 | GASKET, 17 x 33.2 x 0.8T | $4.00 |
Out of Stock | ||
20 | REAR PLATE | $8.26 |
Out of Stock | ||
22 | ROTOR BLADE (SINGLE) | $4.00 |
Out of Stock | ||
23 | ROTOR | $23.34 |
Out of Stock | ||
24 | CYLINDER | $20.06 |
Out of Stock | ||
25 | ROTOR SPACER/BEARING SPACER | $4.00 |
In Stock (Only 4 left) | ||
26 | LINE-UP PIN | $4.00 |
In Stock (Only 3 left) | ||
27 | FRONT PLATE OLD - PIN STYLE | $7.00 |
Out of Stock | ||
28 | BALL BEARING | $7.13 |
In Stock | ||
30 | COUPLING | $4.00 |
Out of Stock | ||
31 | BALL BEARING | $7.51 |
In Stock (Only 9 left) | ||
32 | NUT | $7.54 |
Out of Stock | ||
33 | CLAMP NUT | $9.40 |
Out of Stock | ||
34 | SPINDLE HOUSING | $28.46 |
Out of Stock | ||
35 | SPINDLE | $30.06 |
Out of Stock | ||
36 | BEARING (2 PC, 609) | $25.16 |
Out of Stock | ||
37 | PINION GEAR (15T) | $28.38 |
Out of Stock | ||
38 | ROUND HEAD SCREW, M4 X 20L | $4.00 |
Out of Stock | ||
39 | ANGLE HOUSING | $20.66 |
Out of Stock | ||
40 | WASHER | $4.00 |
Out of Stock | ||
41 | BEARING | $12.74 |
In Stock (Only 1 left) | ||
43 | SPINDLE/BEVEL GEAR ASSY (18T) | $33.60 |
Out of Stock | ||
44 | BEARING | $19.28 |
In Stock | ||
45 | NUT | $4.00 |
Out of Stock | ||
46 | SCREW {M4 x 16} SXC601 (L4-42) | $4.00 |
Out of Stock | ||
47 | HANDLE LINK/WHEEL GUARD LINK | $4.00 |
Out of Stock | ||
48 | FACE PLATE | $4.00 |
Out of Stock | ||
49 | HEX FLAT HEAD SCREW (M4 x 10) | $4.00 |
Out of Stock | ||
50 | DISC COVER | $7.80 |
Out of Stock | ||
51 | SCREW (M4 x 6L) GRINDER | $4.00 |
Out of Stock | ||
52 | NUT | $5.20 |
Out of Stock | ||
54 | WASHER | $4.40 |
Out of Stock | ||
55 | NUT FOR CUT-OFF TOOL | $6.46 |
In Stock (Only 5 left) | ||
56 | SCREW w/WASHER M5 X 10L | $4.00 |
In Stock (Only 7 left) | ||
58 | HEX WRENCH/HEX KEY (4 mm) | $4.00 |
Out of Stock | ||
59 | STOP SPANNER (17 mm) | $5.26 |
Out of Stock | ||
60 | RUBBER O-RING | $1.57 |
In Stock | ||
65 | HANDLE LINK (LEFT) | $6.20 |
In Stock (Only 1 left) | ||
66 | HANDLE LINK RIGHT | $5.80 |
Out of Stock | ||
67 | NUT (M5) | $4.00 |
Out of Stock | ||
68 | SOCKET HEAD CAP SCREW | $4.00 |
Out of Stock | ||
69 | SIDE HANDLE M10 - 1.5T 110 mm LONG | $14.34 |
Out of Stock | ||
71 | WASHER | $4.00 |
Out of Stock | ||
72 | O-RING | $4.00 |
Out of Stock | ||
73 | O-RING | $4.00 |
Out of Stock | ||
74 | GREASE FITTING | $4.00 |
In Stock (Only 7 left) | ||
75 | WASHER | $1.57 |
Out of Stock | ||
76 | NUT | $4.00 |
Out of Stock | ||
77 | SCREW M4 x 8L | $4.00 |
Out of Stock | ||
78 | SNAP RING (RTW-18) | $2.38 |
Out of Stock | ||
79 | REGULATOR | $4.45 |
Out of Stock | ||
Model #AT154R
BrandSnap-on
Tool TypeCut Off Saw
Powered ByAir
Weight3 lbs. / 1.36 kg
