AIRCAT Pneumatic Tools AC1993-1-VXL


AIRCAT Pneumatic Tools AC1993-1-VXL

This tool is unavailable for purchase, but replacement parts may be available below.
1" Vibrotherm Impact Wrench - Short Anvil

Replacement Parts

Details

Accessories

Warranty & Documentation

Ref #PartPrice
1
HAMMER CASE
$187.50
Out of Stock
2
INSERTS RECOIL
$3.49
Out of Stock
3
ANVIL BUSHING
$12.89
Out of Stock
4
O-RING
$1.22
Out of Stock
5
ANVIL CLIP
$1.22
In Stock (Only 2 left)
6
ANVIL
$244.53
Out of Stock
7
HAMMER CAGE COVER
$44.93
Out of Stock
8
HAMMER PIN
$4.30
Out of Stock
9
HAMMER
$123.05
Out of Stock
10
HAMMER CAGE
$301.95
Out of Stock
11
FRONT GASKET
$17.96
Out of Stock
12
HOUSING BAND
$113.28
Out of Stock
13
MOTOR HOUSING
$155.47
Out of Stock
14
BALL BEARING
$55.97
Out of Stock
15
SPRING PIN
$9.37
Out of Stock
16
FRONT END PLATE
$56.64
In Stock (Only 2 left)
17
STEEL BALL
$2.24
Out of Stock
18
ROTOR
$222.27
Out of Stock
19
ROTOR BLADE (SINGLE)
$14.06
Out of Stock
20
CYLINDER
$164.84
Out of Stock
21
REAR END PLATE
$51.57
Out of Stock
22
BALL BEARING
$15.58
In Stock (Only 1 left)
23
REAR GASKET
$22.27
In Stock (Only 1 left)
24
THROTTLE HANDLE
$392.58
Out of Stock
25
SPRING WASHER
$2.37
Out of Stock
26
CAP SCREW
$5.87
Out of Stock
27
SPRING PIN
$1.08
Out of Stock
28
INNER TRIGGER
$8.10
Out of Stock
29
TRIGGER RUBBER
$11.59
Out of Stock
30
SPRING PIN
$1.80
Out of Stock
31
RUBBER PROTECTOR
$1.80
Out of Stock
32
E-Clip
$2.38
Out of Stock
33
PIN
$8.10
Out of Stock
34
VALVE BUSHING
$17.45
Out of Stock
35
VALVE STEM
$17.45
Out of Stock
36
BUSHING
$26.80
Out of Stock
37
STEEL BALL, .5"
$5.86
Out of Stock
38
SPRING
$3.49
Out of Stock
39
O-RING - 119
$1.22
Out of Stock
40
AIR INLET
$60.57
Out of Stock
41
SPRING PIN
$1.22
Out of Stock
42
REVERSE VALVE BUSHING
$26.92
Out of Stock
43
REVERSE VALVE
$67.55
Out of Stock
44
SPRING PIN
$1.22
In Stock (Only 1 left)
45
SPRING
$1.34
Out of Stock
46
STEEL BALL
$1.34
Out of Stock
47
REVERSE KNOB
$10.47
Out of Stock
48
LOCK NUT
$1.64
Out of Stock
49
D-TYPE HANDLE
$70.31
Out of Stock
50
HANDLE CLAMPER
$17.19
Out of Stock
51
CAP SCREW
$4.69
Out of Stock
52
6 mm HEX WRENCH
$2.70
Out of Stock
53
SPANNER
$22.27
Out of Stock
Model #AC1993-1-VXL
BrandAIRCAT Pneumatic Tools
Tool Type1" Impact Wrench
Powered ByAir
Weight19 lbs. / 8.62 kg

No accessories found for this tool model.

Warranty

Power Tool Repair is authorized to repair this tool under warranty.

Warranty Duration: 3 Years

Documentation

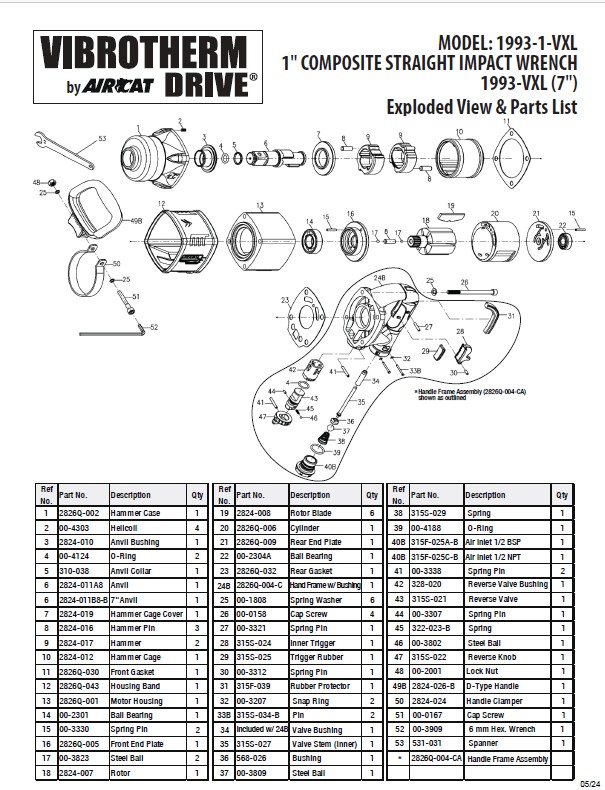

BreakdownManual
