Carlyle CPTIW12
Carlyle CPTIW12
This tool is unavailable for purchase, but replacement parts may be available below.

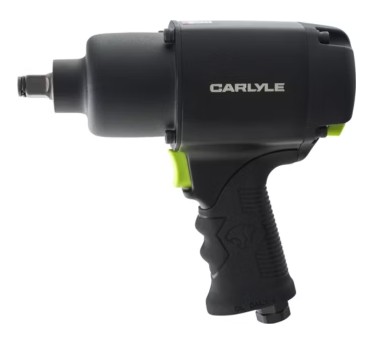

Carlyle Super-Duty Air Impact Wrench - 1/2 in Drive
Replacement Parts
Details
Accessories
Warranty & Documentation

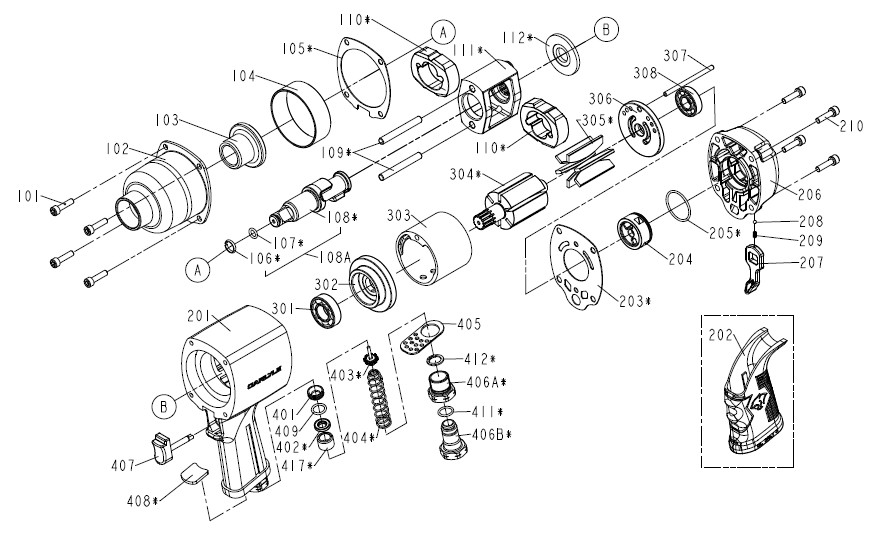

| Ref # | Part | Price |
|---|---|---|
101 | BOLT ASSY FOR 6-766 | $4.00 |
Out of Stock | ||
102 | HAMMER CASE | $42.18 |
Out of Stock | ||
103 | HAMMER CASE BUSHING | $13.92 |
Out of Stock | ||
104 | HAMMER CASE PILOT | $6.58 |
Out of Stock | ||
105 | GASKET | $4.00 |
Out of Stock | ||
106 | SOCKET RETAINER | $4.00 |
Out of Stock | ||
108 | ANVIL FOR 6-767 | $90.46 |
Out of Stock | ||
109 | HAMMER FRAME PIN | $4.00 |
Out of Stock | ||
110 | HAMMER (1230C-0070001-1) | $44.52 |
Out of Stock | ||
111 | HAMMER FRAME | $76.82 |
Out of Stock | ||
112 | WASHER/6767 | $4.00 |
Out of Stock | ||
203 | HOUSING GASKET | $4.00 |
In Stock (Only 1 left) | ||
204 | REVERSE VALVE | $12.94 |
Out of Stock | ||
205 | O-RING | $4.00 |
Out of Stock | ||
206 | R COVER | $47.14 |
Out of Stock | ||
208 | STEEL BALL | $4.00 |
Out of Stock | ||
209 | SPRING | $4.00 |
Out of Stock | ||
210 | BOLT ASSY | $4.00 |
Out of Stock | ||
301 | BALL BEARING | $15.76 |
Out of Stock | ||
302 | FRONT BEARING PLATE | $47.14 |
Out of Stock | ||
303 | CYLINDER/6767 | $59.36 |
Out of Stock | ||
304 | ROTOR | $54.62 |
Out of Stock | ||
305 | ROTOR BLADE (SINGLE) | $4.00 |
Out of Stock | ||
307 | PIN/6767 | $4.00 |
Out of Stock | ||
308 | BALL BEARING | $12.02 |
Out of Stock | ||
401 | BUSHING | $4.02 |
Out of Stock | ||
402 | SEAL | $4.00 |
In Stock | ||
403 | TIP VALVE | $5.44 |
In Stock (Only 5 left) | ||
404 | VALVE SPRING | $4.00 |
Out of Stock | ||
405 | EXHAUST DEFLECTOR | $4.00 |
Out of Stock | ||
406B | SWIVEL INLET ASSY | $14.62 |
In Stock (Only 3 left) | ||
408 | MUFFLER | $4.00 |
Out of Stock | ||
417 | BUSHING | $4.00 |
In Stock | ||
Model #CPTIW12
BrandCarlyle
Tool Type1/2" Impact Wrench
Powered ByAir
Weight5.9 lbs. / 2.68 kg
We Service? Yes Submit Order
