Carlyle CPTIW18EX
Carlyle CPTIW18EX
This tool is unavailable for purchase, but replacement parts may be available below.

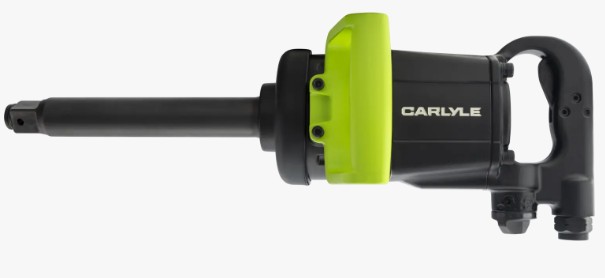

1" Drive Air Impact Wrench w/Extended Anvil, 2,500 ft-lb, 5,000 rpm
Replacement Parts
Details
Accessories
Warranty & Documentation

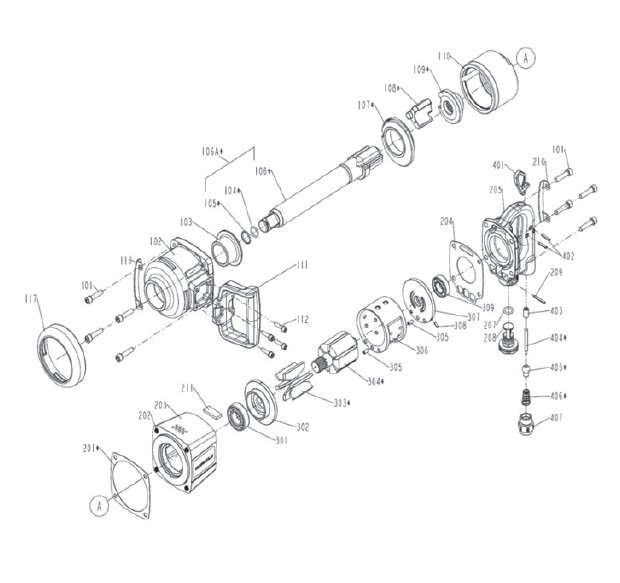

| Ref # | Part | Price |
|---|---|---|
101 | BOLT ASSY | $4.00 |
Out of Stock | ||
103 | HAMMER CASE BUSHING | $66.64 |
Out of Stock | ||
106A | 1" DRIVE 8" LONG EXTENDED ANVIL ASSY | $685.68 |
Out of Stock | ||
107 | WASHER | $111.16 |
Out of Stock | ||
108 | HAMMER | $111.66 |
Out of Stock | ||
109 | HAMMER CAM | $84.10 |
Out of Stock | ||
110 | HAMMER FRAME | $379.70 |
Out of Stock | ||
113 | PROTECTOR | $5.44 |
Out of Stock | ||
201 | HAMMER CASE PACKING/GASKET | $4.46 |
Out of Stock | ||
202 | THREAD INSERT | $4.46 |
Out of Stock | ||
204 | HAMMER CASE PACKING | $13.42 |
Out of Stock | ||
207 | O-RING | $4.00 |
Out of Stock | ||
208 | REVERSE VALVE SET | $45.02 |
Out of Stock | ||
209 | SPRING PIN | $4.00 |
Out of Stock | ||
210 | PROTECTOR | $4.94 |
Out of Stock | ||
302 | FRONT END PLATE | $92.78 |
Out of Stock | ||
304 | ROTOR | $256.30 |
Out of Stock | ||
305 | SPRING PIN | $4.00 |
Out of Stock | ||
306 | CYLINDER | $129.90 |
Out of Stock | ||
307 | REAR BEARING PLATE | $90.94 |
Out of Stock | ||
308 | SPRING PIN | $4.00 |
Out of Stock | ||
401 | TRIGGER | $19.78 |
Out of Stock | ||
402 | SPRING PIN | $4.00 |
Out of Stock | ||
403 | BUSHING | $4.02 |
Out of Stock | ||
404 | PIN | $4.00 |
Out of Stock | ||
405 | SEAL PALL | $4.02 |
Out of Stock | ||
406 | SPRING | $4.00 |
Out of Stock | ||
407 | AIR INLET | $19.08 |
Out of Stock | ||
Model #CPTIW18EX
BrandCarlyle
Tool Type1" Impact Wrench
Powered ByAir
Weight27.6 lbs. / 12.52 kg
We Service? Yes Submit Order
No accessories found for this tool model.
Replacement Parts
| Ref # | Part | Price |
|---|---|---|
101 | BOLT ASSY | $4.00 |
Out of Stock | ||
103 | HAMMER CASE BUSHING | $66.64 |
Out of Stock | ||
106A | 1" DRIVE 8" LONG EXTENDED ANVIL ASSY | $685.68 |
Out of Stock | ||
107 | WASHER | $111.16 |
Out of Stock | ||
108 | HAMMER | $111.66 |
Out of Stock | ||
109 | HAMMER CAM | $84.10 |
Out of Stock | ||
110 | HAMMER FRAME | $379.70 |
Out of Stock | ||
113 | PROTECTOR | $5.44 |
Out of Stock | ||
201 | HAMMER CASE PACKING/GASKET | $4.46 |
Out of Stock | ||
202 | THREAD INSERT | $4.46 |
Out of Stock | ||
204 | HAMMER CASE PACKING | $13.42 |
Out of Stock | ||
207 | O-RING | $4.00 |
Out of Stock | ||
208 | REVERSE VALVE SET | $45.02 |
Out of Stock | ||
209 | SPRING PIN | $4.00 |
Out of Stock | ||
210 | PROTECTOR | $4.94 |
Out of Stock | ||
302 | FRONT END PLATE | $92.78 |
Out of Stock | ||
304 | ROTOR | $256.30 |
Out of Stock | ||
305 | SPRING PIN | $4.00 |
Out of Stock | ||
306 | CYLINDER | $129.90 |
Out of Stock | ||
307 | REAR BEARING PLATE | $90.94 |
Out of Stock | ||
308 | SPRING PIN | $4.00 |
Out of Stock | ||
401 | TRIGGER | $19.78 |
Out of Stock | ||
402 | SPRING PIN | $4.00 |
Out of Stock | ||
403 | BUSHING | $4.02 |
Out of Stock | ||
404 | PIN | $4.00 |
Out of Stock | ||
405 | SEAL PALL | $4.02 |
Out of Stock | ||
406 | SPRING | $4.00 |
Out of Stock | ||
407 | AIR INLET | $19.08 |
Out of Stock | ||
Details
Model #CPTIW18EX
BrandCarlyle
Tool Type1" Impact Wrench
Powered ByAir
Weight27.6 lbs. / 12.52 kg
We Service? Yes Submit Order
Accessories
No accessories found for this tool model.
