Carlyle CPTIW1AL9EX
Carlyle CPTIW1AL9EX
This tool is unavailable for purchase, but replacement parts may be available below.

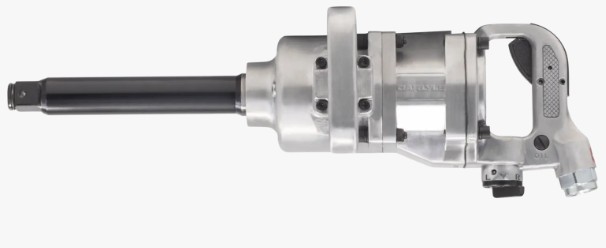

1" Drive Air Impact Wrench w/Extended Anvil, 1,600 ft-lb, 4,000 rpm

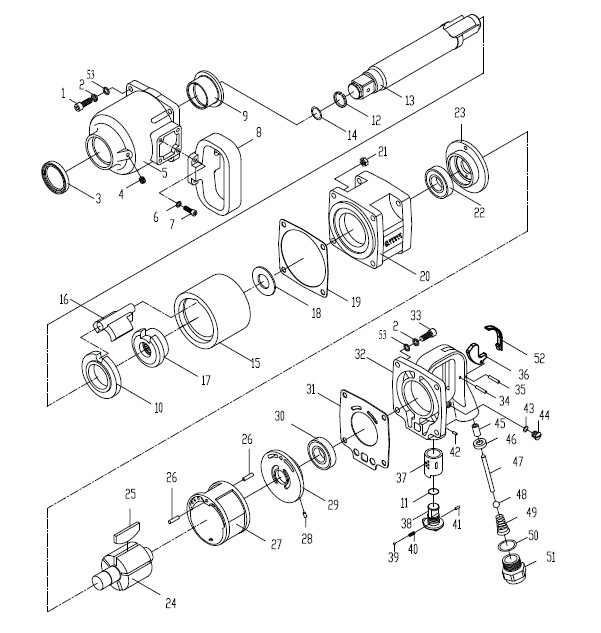

Replacement Parts
Details
Accessories
Warranty & Documentation
| Ref # | Part | Price |
|---|---|---|
1 | SCREW (M8x35) | $4.00 |
Out of Stock | ||
2 | LOCK WASHER (#8) | $4.00 |
Out of Stock | ||
4 | HEX SOCKET HEAD SET SCREW (M8x6) | $4.40 |
Out of Stock | ||
6 | LOCK WASHER (#6) | $4.00 |
Out of Stock | ||
7 | HEX SOCKET CAP SCREW (M6x20) | $4.00 |
Out of Stock | ||
8 | SIDE HANDLE | $25.24 |
Out of Stock | ||
10 | FRONT WASHER | $22.07 |
Out of Stock | ||
11 | O-RING | $4.14 |
Out of Stock | ||
12 | RETAINER RING | $4.00 |
Out of Stock | ||
13 | 9" EXTENDED ANVIL ASSY | $126.98 |
Out of Stock | ||
14 | O-RING | $4.60 |
Out of Stock | ||
15 | HAMMER CAGE | $92.12 |
Out of Stock | ||
16 | HAMMER | $30.08 |
Out of Stock | ||
17 | HAMMER CAM | $31.94 |
Out of Stock | ||
18 | SPACER | $4.00 |
Out of Stock | ||
19 | FRONT CYLINDER GASKET | $4.00 |
Out of Stock | ||
21 | ALL-METAL LOCKING NUT (M8) | $4.00 |
Out of Stock | ||
24 | ROTOR | $82.12 |
Out of Stock | ||
25 | ROTOR BLADES (SET OF 5) | $13.48 |
Out of Stock | ||
28 | SPRING-TYPE STRAIGHT PIN | $4.00 |
Out of Stock | ||
29 | REAR END PLATE | $44.04 |
Out of Stock | ||
30 | BEARING | $7.34 |
Out of Stock | ||
Model #CPTIW1AL9EX
BrandCarlyle
Tool Type1" Impact Wrench
Powered ByAir
Weight33.1 lbs. / 15.01 kg
We Service? Yes Submit Order
