Carlyle CPTIW1PG
Carlyle CPTIW1PG
This tool is unavailable for purchase, but replacement parts may be available below.

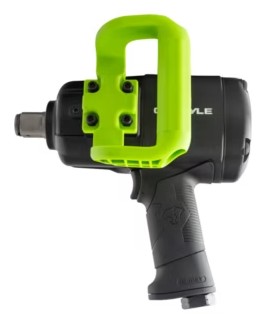

1" Drive Pistol Grip Air Impact Wrench, 2,500 ft-lb, 6,000 rpm
Replacement Parts
Details
Accessories
Warranty & Documentation

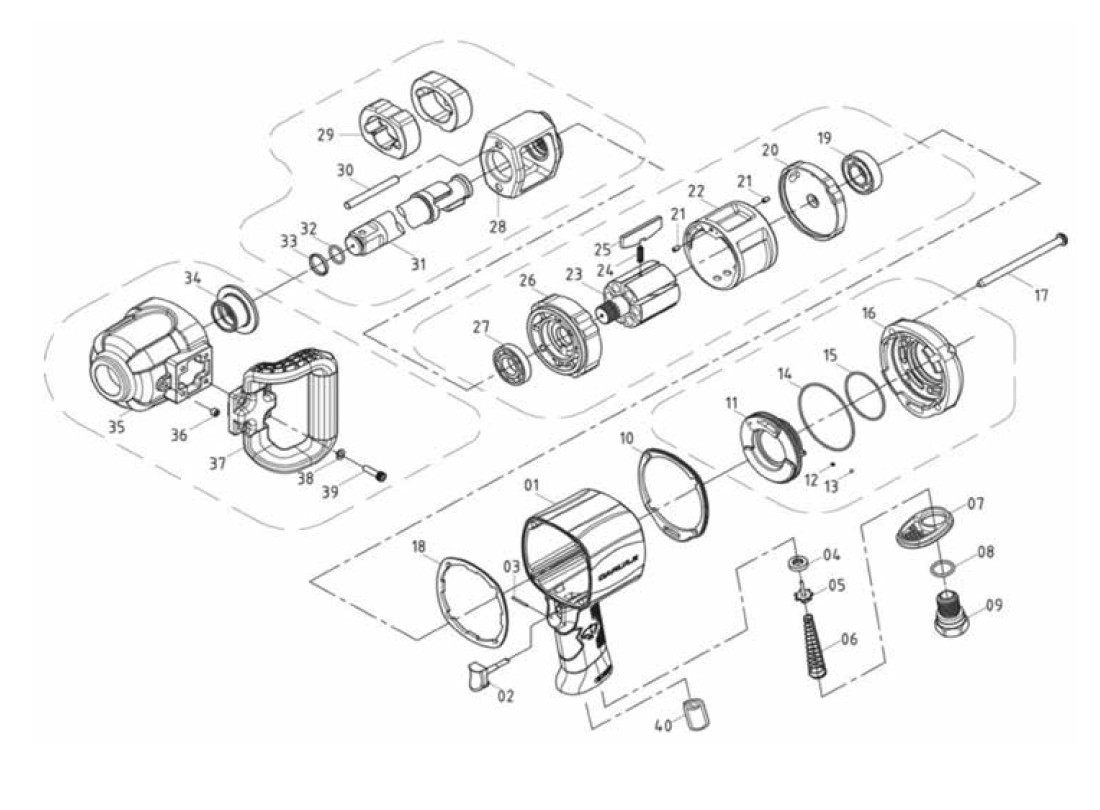

| Ref # | Part | Price |
|---|---|---|
2 | TRIGGER | $6.92 |
Out of Stock | ||
3 | SPRING PIN | $4.00 |
Out of Stock | ||
4 | THROTTLE SEAT | $4.00 |
In Stock (Only 7 left) | ||
5 | PIN VALVE ROD | $4.00 |
Out of Stock | ||
6 | CONE SPRING | $4.00 |
Out of Stock | ||
7 | EXHAUST DEFLECTOR | $5.22 |
Out of Stock | ||
8 | O-RING | $4.00 |
Out of Stock | ||
9 | AIR INLET (1/2"-14 NPT) | $22.04 |
Out of Stock | ||
10 | PACKING | $5.94 |
Out of Stock | ||
11 | REVERSE LEVER | $15.62 |
In Stock | ||
12 | SPRING | $4.00 |
Out of Stock | ||
13 | STEEL BALL | $4.00 |
In Stock (Only 1 left) | ||
14 | O-RING | $4.00 |
Out of Stock | ||
15 | O-RING | $4.00 |
Out of Stock | ||
17 | SCREW | $4.00 |
Out of Stock | ||
18 | PACKING | $5.94 |
Out of Stock | ||
19 | BALL BEARING | $15.76 |
Out of Stock | ||
20 | REAR PLATE | $27.78 |
Out of Stock | ||
21 | SPRING PIN | $4.00 |
Out of Stock | ||
22 | CYLINDER | $129.74 |
Out of Stock | ||
23 | ROTOR | $169.38 |
Out of Stock | ||
25 | ROTOR BLADES w/SPRINGS (SET OF 6) | $31.94 |
In Stock (Only 3 left) | ||
26 | FRONT PLATE | $29.18 |
Out of Stock | ||
27 | BALL BEARING (IKS EE8) | $55.12 |
Out of Stock | ||
28 | HAMMER CAGE | $155.12 |
Out of Stock | ||
29 | HAMMERS (SET OF 2) | $52.22 |
Out of Stock | ||
30 | HAMMER PINS (SET OF 2) | $4.00 |
Out of Stock | ||
31 | ANVIL ASSY (INCL. O-RING & SOCKET RETAINER) | $203.80 |
Out of Stock | ||
35 | HAMMER CASE ASSY, BLACK (INCL. BUSHING & GREASE PLUG) | $109.46 |
In Stock (Only 1 left) | ||
38 | WASHER | $4.00 |
In Stock (Only 5 left) | ||
39 | SCREW | $4.00 |
In Stock (Only 3 left) | ||
Model #CPTIW1PG
BrandCarlyle
Tool Type1" Impact Wrench
Powered ByAir
Weight12.7 lbs. / 5.76 kg
We Service? Yes Submit Order
No accessories found for this tool model.
