Chicago Pneumatic CP875

Right Angle Die Grinder

Chicago Pneumatic CP875

Right Angle Die Grinder
$122.89
1/4" Mini 90° Angle Air Die Grinder
This tool has been replaced by RP9101.
Condition:
Out of Stock Lead Time: 14 days
Qty:

Replacement Parts

Details

Accessories

Warranty & Documentation

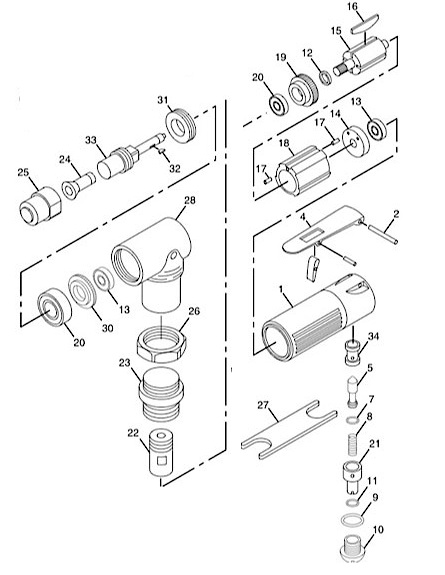

Line Drawing
Ref #PartPrice
***
CP875 ANG DIE GRINDER
CPT023995
$108.15
Out of Stock
*
MOTOR ASSY
CPCA145217
$90.81
In Stock (Only 1 left)
*
GEAR HOUSING
CPCA145218
$72.41
In Stock (Only 1 left)
*
HOUSING
CPCA145219
$24.72
In Stock (Only 1 left)
1
HOUSING
CPCA144786
$25.03
In Stock (Only 1 left)
2
PIN
CPCA144778
$2.63
Out of Stock
4
LEVER
CPCA144788
$6.59
Out of Stock
5
VALVE
CPCA144789
$3.94
Out of Stock
7
O-RING
CPCA144842
$2.63
Out of Stock
8
SPRING
CPCA144790
$2.63
Out of Stock
9
O-RING
CPCA144843
$2.63
Out of Stock
10
THROTTLE VALVE PLUG
CPCA144791
$2.62
In Stock (Only 2 left)
11
O-RING
CPCA144844
$1.04
Out of Stock
12
COLLAR
CPCA144792
$3.97
Out of Stock
13
BEARING
CPCA144793
Out of Stock
14
REAR PLATE
CPCA144794
$13.20
In Stock (Only 1 left)
15
ROTOR
CP2050484363
$22.36
In Stock (Only 3 left)
16
ROTOR BLADES (SET OF 4)
CPCA144796
$10.51
Out of Stock
17
ROLL PIN
CPCA144797
$2.31
In Stock (Only 6 left)
18
CYLINDER
CP2050484383
$9.25
Out of Stock
19
FRONT END PLATE
CPCA144799
$10.51
Out of Stock
20
BEARING
CPCA144800
$23.59
Out of Stock
21
REGULATOR
CPCA144801
$2.61
In Stock (Only 1 left)
22
PINION
CPCA144802
$23.70
Out of Stock
23
NUT
CPCA144803
$14.48
In Stock
24
1/4" COLLET
CPC138727
$22.31
Out of Stock
24A
COLLET 6 mm
CPC139289
$23.92
Out of Stock
25
COLLET NUT
CPC138728
$17.27
Out of Stock
26
HOUSING NUT
CPCA144806
$13.20
Out of Stock
27
WRENCH SET
CPCA144807
$6.61
In Stock (Only 2 left)
28
HOUSING HEAD
CPCA144808
$22.40
Out of Stock
30
GEAR
CP2050484433
$27.67
In Stock (Only 5 left)
31
LOCK RING
CPCA144810
$6.56
In Stock (Only 1 left)
32
KEY
CP2050484453
$3.92
In Stock (Only 4 left)
33
SPINDLE
CP2050484463
$21.07
In Stock (Only 1 left)
34
BUSHING-THROTTLE VALVE
CPCA147745
$2.64
Out of Stock
Model #CP875
BrandChicago Pneumatic
Tool TypeRight Angle Die Grinder
Powered ByAir
Weight

No accessories found for this tool model.

Warranty

Power Tool Repair is authorized to repair this tool under warranty.

Warranty Duration: 1 Year

Documentation

Breakdown

Replacement Parts
Line Drawing
Ref #PartPrice
***
CP875 ANG DIE GRINDER
CPT023995
$108.15
Out of Stock
*
MOTOR ASSY
CPCA145217
$90.81
In Stock (Only 1 left)
*
GEAR HOUSING
CPCA145218
$72.41
In Stock (Only 1 left)
*
HOUSING
CPCA145219
$24.72
In Stock (Only 1 left)
1
HOUSING
CPCA144786
$25.03
In Stock (Only 1 left)
2
PIN
CPCA144778
$2.63
Out of Stock
4
LEVER
CPCA144788
$6.59
Out of Stock
5
VALVE
CPCA144789
$3.94
Out of Stock
7
O-RING
CPCA144842
$2.63
Out of Stock
8
SPRING
CPCA144790
$2.63
Out of Stock
9
O-RING
CPCA144843
$2.63
Out of Stock
10
THROTTLE VALVE PLUG
CPCA144791
$2.62
In Stock (Only 2 left)
11
O-RING
CPCA144844
$1.04
Out of Stock
12
COLLAR
CPCA144792
$3.97
Out of Stock
13
BEARING
CPCA144793
Out of Stock
14
REAR PLATE
CPCA144794
$13.20
In Stock (Only 1 left)
15
ROTOR
CP2050484363
$22.36
In Stock (Only 3 left)
16
ROTOR BLADES (SET OF 4)
CPCA144796
$10.51
Out of Stock
17
ROLL PIN
CPCA144797
$2.31
In Stock (Only 6 left)
18
CYLINDER
CP2050484383
$9.25
Out of Stock
19
FRONT END PLATE
CPCA144799
$10.51
Out of Stock
20
BEARING
CPCA144800
$23.59
Out of Stock
21
REGULATOR
CPCA144801
$2.61
In Stock (Only 1 left)
22
PINION
CPCA144802
$23.70
Out of Stock
23
NUT
CPCA144803
$14.48
In Stock
24
1/4" COLLET
CPC138727
$22.31
Out of Stock
24A
COLLET 6 mm
CPC139289
$23.92
Out of Stock
25
COLLET NUT
CPC138728
$17.27
Out of Stock
26
HOUSING NUT
CPCA144806
$13.20
Out of Stock
27
WRENCH SET
CPCA144807
$6.61
In Stock (Only 2 left)
28
HOUSING HEAD
CPCA144808
$22.40
Out of Stock
30
GEAR
CP2050484433
$27.67
In Stock (Only 5 left)
31
LOCK RING
CPCA144810
$6.56
In Stock (Only 1 left)
32
KEY
CP2050484453
$3.92
In Stock (Only 4 left)
33
SPINDLE
CP2050484463
$21.07
In Stock (Only 1 left)
34
BUSHING-THROTTLE VALVE
CPCA147745
$2.64
Out of Stock
Details
Model #CP875
BrandChicago Pneumatic
Tool TypeRight Angle Die Grinder
Powered ByAir
Weight2 lbs. / 0.91 kg
Accessories

No accessories found for this tool model.

Warranty & Documentation

Warranty

Power Tool Repair is authorized to repair this tool under warranty.

Warranty Duration: 1 Year

Documentation

Breakdown
