Cornwell Tools CAT375RA


Cornwell Tools CAT375RA

This tool is unavailable for purchase, but replacement parts may be available below.
3/8" Reversible Right Angle Air Drill

Replacement Parts

Details

Accessories

Warranty & Documentation

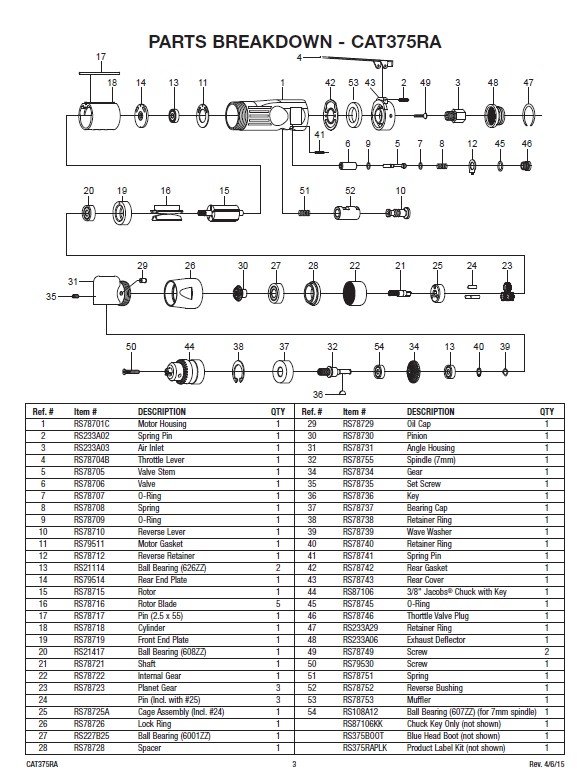

Line Drawing
Ref #PartPrice
*
KEY FOR RS87106 CHUCK
$4.00
Out of Stock
1
HOUSING
$27.66
Out of Stock
2
PIN
$4.00
Out of Stock
3
AIR INLET
$4.40
Out of Stock
4
LEVER
$7.71
Out of Stock
5
VALVE STEM (INCL. #7 & 9)
$4.00
Out of Stock
6
VALVE
$4.00
Out of Stock
7
O-RING FOR 6-787 (30107)
$4.00
Out of Stock
8
SPRING
$4.00
Out of Stock
9
O-RING
$4.00
Out of Stock
10
REVERSE BUTTON
$12.18
Out of Stock
11
MOTOR GASKET
$4.00
Out of Stock
12
REVERSE VALVE RETAINER
$4.00
Out of Stock
13
BALL BEARING (626ZZ)
$13.14
Out of Stock
14
END PLATE
$6.54
Out of Stock
15
ROTOR FOR 6-787
$21.14
Out of Stock
16
ROTOR BLADE (SINGLE)
$4.00
Out of Stock
17
PIN
$4.00
Out of Stock
18
CYLINDER
$21.82
Out of Stock
19
FRONT END PLATE (70919R) FOR 3/8" RV ANGLE DRILL
$8.66
Out of Stock
20
BEARING
$9.00
Out of Stock
21
SHAFT
$8.22
Out of Stock
22
INT. GEAR
$9.80
Out of Stock
23
PLANET GEAR
$6.60
Out of Stock
25
CAGE
$5.46
Out of Stock
26
LOCK HOUSING
$26.24
Out of Stock
27
BALL BEARING
$25.12
Out of Stock
28
SPACER
$7.60
Out of Stock
29
GREASE FITTING
$4.00
Out of Stock
30
PINION GEAR
$24.46
In Stock (Only 3 left)
31
ANGLE HOUSING
$22.96
Out of Stock
32
7 mm SPINDLE
$18.22
In Stock (Only 3 left)
34
GEAR
$33.80
In Stock (Only 1 left)
35
SET SCREW
$4.00
Out of Stock
36
KEY
$4.00
Out of Stock
37
BEARING CAP (70937R) {3/8" RV ANGLE DRILL}
$13.88
Out of Stock
38
RETAINING RING
$4.00
Out of Stock
39
WAVE WASHER FOR 3/8" REVERSIBLE ANGLE DRILL
$4.00
Out of Stock
40
RETAINER RING FOR 3/8" REVERSIBLE ANGLE DRILL
$4.00
Out of Stock
41
SPRING PIN
$4.00
Out of Stock
42
REAR GASKET FOR 3/8" REVERSIBLE ANGLE DRILL
$4.00
Out of Stock
43
REAR COVER
$8.94
Out of Stock
44
3/8" x 3/8" TH CHUCK w/KEY
$23.80
Out of Stock
45
O-RING (#11)
$4.00
Out of Stock
46
THROTTLE VALVE PLUG FOR 3/8" REVERSIBLE ANGLE DRILL
$4.00
Out of Stock
47
RETAINING RING
$4.00
Out of Stock
48
EXHAUST DEFLECTOR
$4.00
Out of Stock
49
SCREW
$4.00
In Stock (Only 2 left)
50
CHUCK SCREW
$4.00
Out of Stock
51
SPRING FOR 3/8" REVERSIBLE ANGLE DRILL
$4.00
Out of Stock
52
BUSHING
$10.00
Out of Stock
53
MUFFLER/3/8" REV. ANG. DR
$4.00
Out of Stock
54
BALL BEARING
$17.22
Out of Stock
Model #CAT375RA
BrandCornwell Tools
Tool TypeAngle Drill
Powered ByAir
Weight3 lbs. / 1.36 kg
We Service?
Yes
Submit Order

No accessories found for this tool model.

Warranty

Power Tool Repair is authorized to repair this tool under warranty.

Warranty Duration: 1 Year

Documentation

Breakdown
