Kimball Midwest 84-046
Kimball Midwest 84-046
This tool is unavailable for purchase, but replacement parts may be available below.

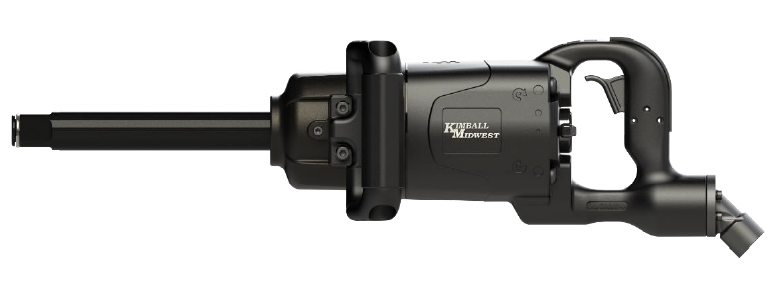

1" Extended Anvil Light Weight Impact Wrench

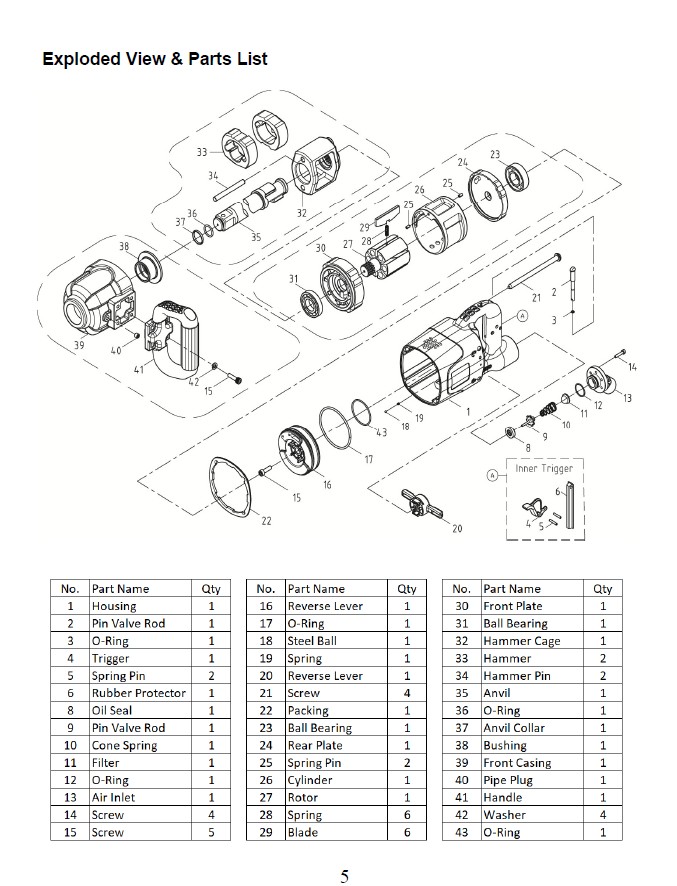

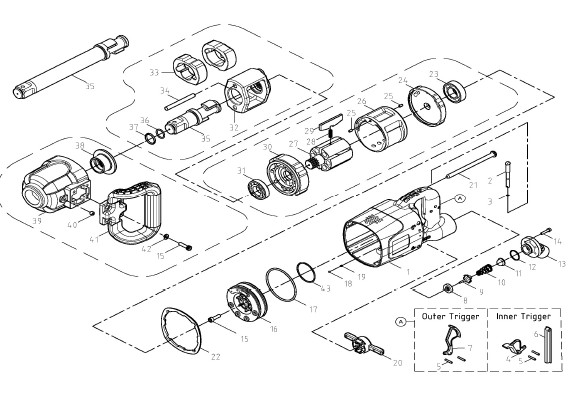

Replacement Parts
Details
Accessories
Warranty & Documentation
| Ref # | Part | Price |
|---|---|---|
* | TUNE-UP KIT FOR 84-046 | $53.10 |
Out of Stock | ||
* | HAMMER KIT | $78.60 |
Out of Stock | ||
* | RETAINER KIT | $5.50 |
Out of Stock | ||
* | 6" ANVIL KIT | $239.00 |
Out of Stock | ||
1 | HOUSING | $149.80 |
Out of Stock | ||
2 | PIN VALVE ROD | $6.80 |
Out of Stock | ||
3 | O-RING | $0.12 |
Out of Stock | ||
8 | SEAL | $1.40 |
Out of Stock | ||
9 | PIN VALVE ROD | $2.40 |
Out of Stock | ||
10 | CONE SPRING | $0.60 |
Out of Stock | ||
11 | FILTER | $1.00 |
Out of Stock | ||
12 | O-RING | $0.14 |
Out of Stock | ||
13 | AIR INLET | $31.80 |
Out of Stock | ||
13 | AIR INLET | $31.80 |
Out of Stock | ||
14 | SCREW | $0.40 |
Out of Stock | ||
15 | SCREW | $0.16 |
Out of Stock | ||
16 | REVERSE LEVER | $16.20 |
Out of Stock | ||
17 | O-RING | $0.80 |
Out of Stock | ||
18 | STEEL BALL | $0.10 |
Out of Stock | ||
19 | SPRING | $0.40 |
Out of Stock | ||
20 | REVERSE LEVER | $8.60 |
Out of Stock | ||
21 | SCREW | $1.80 |
Out of Stock | ||
22 | PACKING | $3.80 |
Out of Stock | ||
23 | BALL BEARING | $11.00 |
Out of Stock | ||
24 | REAR PLATE | $17.80 |
Out of Stock | ||
25 | SPRING PIN | $0.10 |
Out of Stock | ||
26 | CYLINDER | $83.20 |
Out of Stock | ||
27 | ROTOR | $108.60 |
Out of Stock | ||
28 | SPRING | $0.40 |
Out of Stock | ||
29 | ROTOR BLADE (SINGLE) | $3.20 |
Out of Stock | ||
30 | FRONT PLATE | $18.80 |
Out of Stock | ||
31 | BALL BEARING | $35.40 |
Out of Stock | ||
32 | HAMMER CAGE | $99.40 |
Out of Stock | ||
33 | HAMMER | $33.60 |
Out of Stock | ||
34 | HAMMER PIN | $1.80 |
Out of Stock | ||
35 | ANVIL | $130.00 |
Out of Stock | ||
35 | 6" EXTENDED ANVIL | $238.00 |
Out of Stock | ||
35 | 8" EXTENDED ANVIL | $257.00 |
Out of Stock | ||
36 | O-RING | $0.12 |
Out of Stock | ||
37 | ANVIL COLLAR | $0.60 |
Out of Stock | ||
38 | BUSHING | $17.60 |
Out of Stock | ||
39 | FRONT CASING | $52.00 |
Out of Stock | ||
40 | PIPE PLUG | $0.60 |
Out of Stock | ||
41 | HANDLE | $28.40 |
Out of Stock | ||
42 | WASHER | $0.10 |
Out of Stock | ||
43 | O-RING | $0.40 |
Out of Stock | ||
4 | INNER TRIGGER | $8.00 |
Out of Stock | ||
5 | SPRING PIN | $0.10 |
Out of Stock | ||
6 | RUBBER PROTECTOR | $4.20 |
Out of Stock | ||
Model #84-046
BrandKimball Midwest
Tool Type1" Impact Wrench
Powered ByAir
Weight16 lbs. / 7.26 kg
We Service? Yes Submit Order
