Makita BDA350

3/8" Drill

Makita BDA350

3/8" Drill
This tool is unavailable for purchase, but replacement parts may be available below.

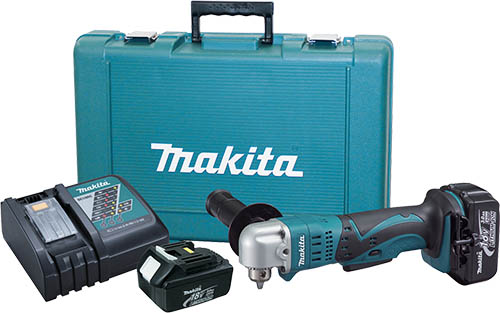

18V LXT Li-Ion Cordless 3/8" Angle Drill Kit

Replacement Parts

Details

Accessories

Warranty & Documentation

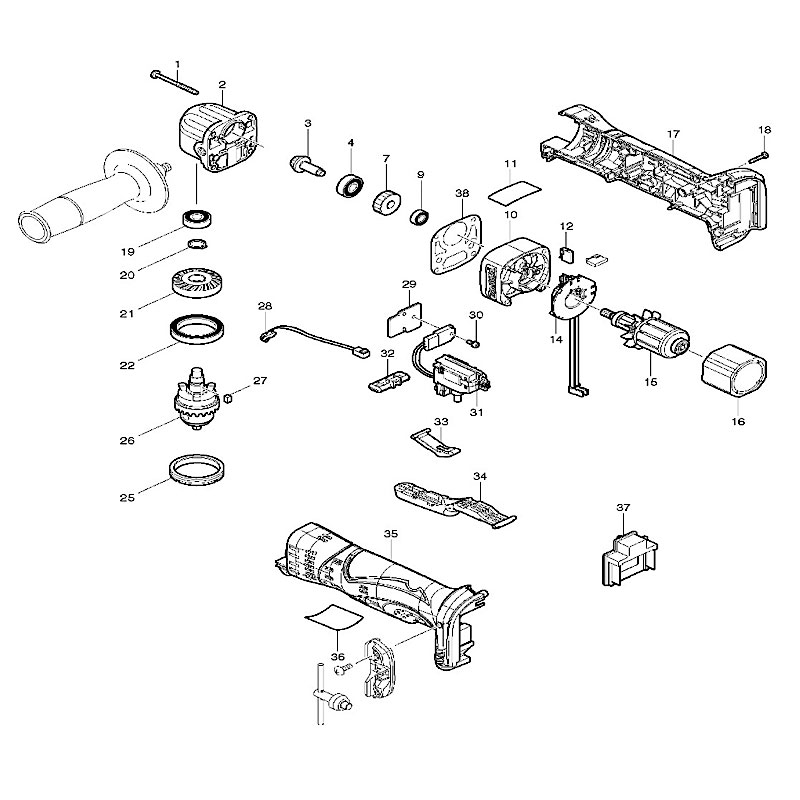

Line Drawing
Ref #PartPrice
1
TAPPING SCREW FLANGE PT4X45 HR2410
MK266069-6
$1.40
Out of Stock
2
GEAR HOUSING, DA3010F
MK317635-3
$23.60
Out of Stock
3
SPIRAL BEVEL GEAR 9, DA3010F
MK227436-0
$9.90
Out of Stock
7
SPUR GEAR 29, BDA350Z
MK227230-0
$8.30
Out of Stock
9
BALL BEARING 9553NB
MK210033-9
$3.60
Out of Stock
10
GEAR HOUSING COVER, BDA350Z
MK450607-6
$5.90
Out of Stock
11
CAUTION LABEL, BDA350Z
MK810423-2
$0.88
Out of Stock
12
CARBON BRUSHES (SET OF 2), 195021-6
MKCB440
$4.10
In Stock (Only 8 left)
14
BRUSH HOLDER CPL., BDA350Z
MK638615-9
$3.40
Out of Stock
15
ARMATURE, BDA350Z
MK619234-0
$30.80
Out of Stock
16
YOKE UNIT, BDA350Z
MK638613-3
$26.10
Out of Stock
18
TAPPING SCREW PT3X16, 6233DWA
MK266130-9
$0.60
Out of Stock
19
BALL BEARING HP1351
MK210029-0
$3.60
Out of Stock
20
RETAINING RING S-12, 9218PBL
MK961052-5
$0.60
Out of Stock
21
SPIRAL BEVEL GEAR 26, BDA350Z
MK227536-6
$11.80
Out of Stock
22
BALL BEARING 6806DDW, BDA350Z
MK211423-9
$3.70
Out of Stock
25
BEARING RETAINER 36-43, DA3010F
MK285842-5
$3.60
Out of Stock
26
3/8" KEYED CHUCK MOUNTED ON SPINDLE
MK763174-5
$41.20
Out of Stock
27
KEY 4, DA3010F
MK254201-4
$1.20
Out of Stock
28
LED CIRCUIT, BDA350Z
MK631814-2
$7.90
Out of Stock
29
HEAT SINK, 6503DZ
MK689098-6
$1.20
Out of Stock
30
PAN HEAD SCREW M3X8, 6233DWAE
MK911006-2
$0.30
Out of Stock
31
SWITCH C3HZ-1A-TPLM, BDA350Z
MK650606-0
$30.90
Out of Stock
32
FORWARD/REVERSE CHANGE LEVER, BDA350Z
MK450610-7
$2.30
Out of Stock
33
LINK, BDA350Z
MK450609-2
$2.30
Out of Stock
34
SWITCH LEVER, BDA350Z
MK450608-4
$3.40
Out of Stock
35
HOUSING SET, BDA350Z
MK188532-8
$21.60
Out of Stock
36
NAME PLATE, BDA350Z
MK865494-4
$0.88
Out of Stock
37
TERMINAL, BJR182 (2) WIRE
MK643838-6
$5.20
Out of Stock
38
GASKET, DA3010F
MK418036-9
$2.40
Out of Stock
1001
GRIP 36, 9557NB
MK153489-2
$2.40
Out of Stock
1002
SCREW M4X12, BHP451
MK251314-2
$0.60
Out of Stock
1003
KEY HOLDER, BDA350Z
MK450688-0
$3.40
Out of Stock
1006
BATTERY
MKBL1830
$154.00
Out of Stock
Model #BDA350
BrandMakita
Tool Type3/8" Drill
Powered ByBattery
Weight
Astro Pneumatic APJC38

Astro Pneumatic APJC38

3/8" x 3/8" CHUCK w/KEY

$10.66
Out of Stock Lead Time: 24 days

Milwaukee Tools ML48-59-4630

TITANIUM DILL BIT SET

Jacobs CL30354

Jacobs CL30354

3/8" KEYLESS CHUCK - 3/8" x 24 THREAD

$41.73
In Stock (Only 9 left)
Milwaukee Tools ML48-89-4630

Milwaukee Tools ML48-89-4630

15-PC SHOCKWAVE RED HELIX TITANIUM DRILL BIT SET

$42.00
$24.97
In Stock (Only 3 left)
Astro Pneumatic APJC38NK

Astro Pneumatic APJC38NK

KEYLESS CHUCK FROM ASTRO

$20.16
In Stock (Only 3 left)
Milwaukee Tools ML48-89-4633

Milwaukee Tools ML48-89-4633

SHOCKWAVE 10-PC TIN KIT

$39.70
$21.97
In Stock
Jacobs CL41BA-12

Jacobs CL41BA-12

41BA CHUCK 3/8" CAP 1/2" MOUNT - w/KK KEY

$49.27
Out of Stock Lead Time: Unknown
Milwaukee Tools ML48-89-4631

Milwaukee Tools ML48-89-4631

23-PC TITANIUM DRILL BIT SET

$59.00
$34.97
In Stock (Only 8 left)
Jacobs CLSM4G61

Jacobs CLSM4G61

3/8" x 3/8" MULTICRAFT CHUCK

$12.00
Out of Stock Lead Time: Unknown
Chicago Pneumatic CP8940158751

Chicago Pneumatic CP8940158751

3/8" x 1/4" MULTICRAFT

$35.00
Out of Stock Lead Time: 14 days
View All Accessories

Warranty

Power Tool Repair is authorized to repair this tool under warranty.

Warranty Duration: 3 Years

Documentation
