Chicago Pneumatic CP6120
Chicago Pneumatic CP6120
This tool is unavailable for purchase, but replacement parts may be available below.
1" Drive Air Impact Wrench

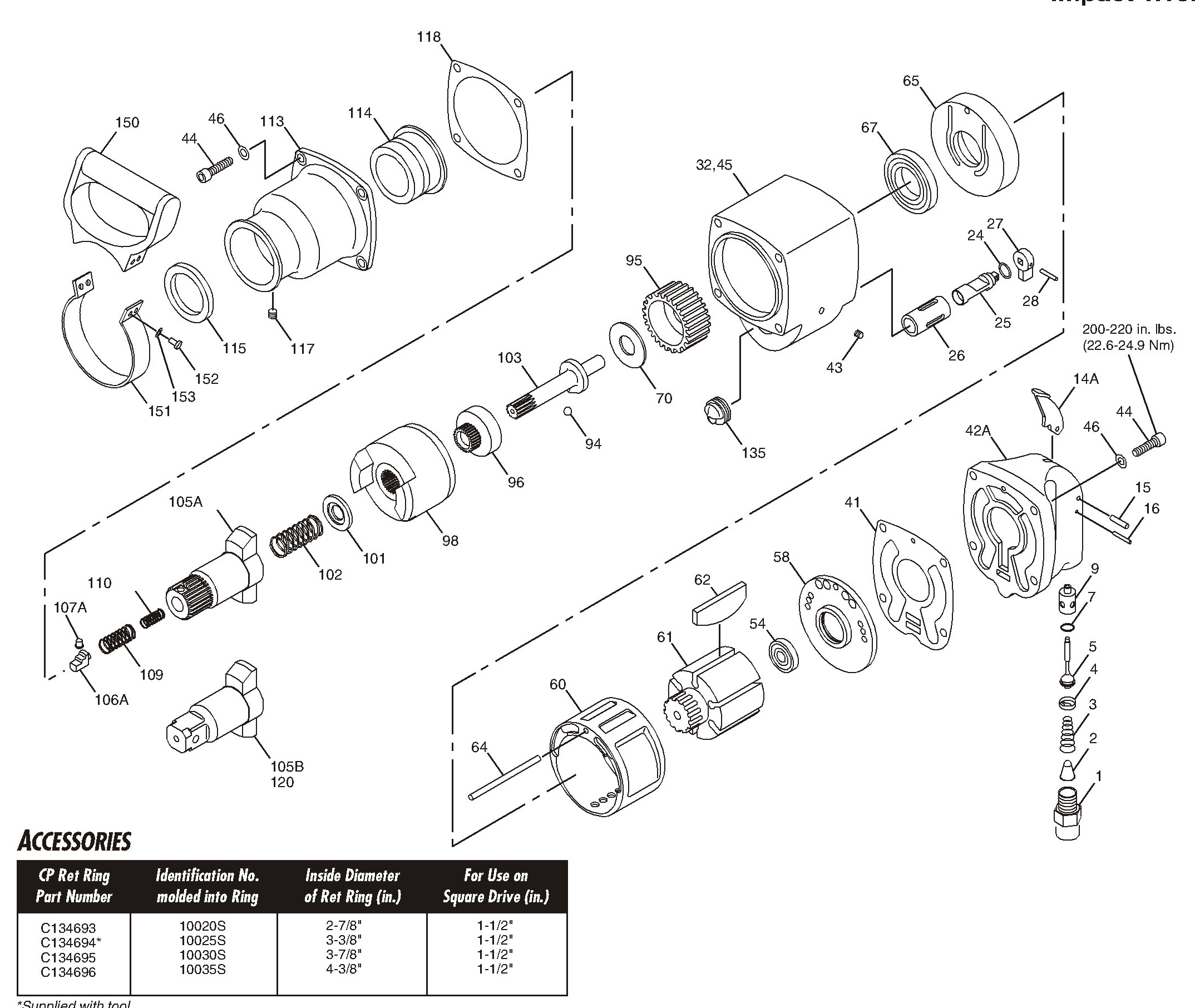

Replacement Parts
Details
Accessories
Warranty & Documentation
| Ref # | Part | Price |
|---|---|---|
1 | THROTTLE CAP | $44.96 |
Out of Stock | ||
2 | SCREEN | $26.50 |
Out of Stock | ||
3 | SPRING IND | $9.77 |
In Stock (Only 1 left) | ||
4 | O-RING RETAINER | $9.45 |
Out of Stock | ||
5 | VALVE ASSY | $114.70 |
Out of Stock | ||
7 | O-RING | $2.36 |
Out of Stock | ||
9 | VALVE BUSHING | $65.86 |
Out of Stock | ||
14A | TRIGGER - OUTSIDE | $70.59 |
Out of Stock | ||
14B | TRIGGER | $58.23 |
Out of Stock | ||
15 | TRIGGER PIN | $33.48 |
Out of Stock | ||
16 | PIN IND | $3.52 |
In Stock (Only 1 left) | ||
24 | O-RING | $4.53 |
Out of Stock | ||
25 | REVERSE VALVE | $177.40 |
Out of Stock | ||
26 | REVERSE VALVE BUSHING | $158.59 |
Out of Stock | ||
27 | REVERSE VALVE LEVER | $44.35 |
Out of Stock | ||
28 | PIN-SPIROL .12X.81 | $3.72 |
Out of Stock | ||
32 | HOUSING | $1,826.08 |
Out of Stock | ||
41 | GASKET | $17.85 |
Out of Stock | ||
42A | HANDLE - OUTSIDE | $1,346.69 |
Out of Stock | ||
42B | HANDLE - INSIDE | $1,240.06 |
Out of Stock | ||
43 | PLUG PIPE | $5.38 |
Out of Stock | ||
44 | CAP SCREW | $3.55 |
Out of Stock | ||
45 | HELICOIL INSERT | $12.34 |
Out of Stock | ||
46 | LOCKWASHER | $1.80 |
Out of Stock | ||
54 | BEARING | $43.87 |
Out of Stock | ||
58 | REAR END PLATE | $388.40 |
Out of Stock | ||
60 | LINER | $829.26 |
Out of Stock | ||
61 | ROTOR | $1,243.65 |
Out of Stock | ||
62 | ROTOR BLADE (SINGLE) | $20.57 |
In Stock (Only 2 left) | ||
64 | DOWEL | $16.13 |
Out of Stock | ||
65 | LOWER END PLATE | $376.29 |
Out of Stock | ||
67 | BEARING | $374.71 |
Out of Stock | ||
70 | THRUST WASHER | $112.96 |
Out of Stock | ||
94 | STEEL BALL | $2.48 |
Out of Stock | ||
95 | COUPLING | $476.37 |
Out of Stock | ||
96 | CAM-DOG IND | $558.45 |
Out of Stock | ||
98 | DOG | $1,003.92 |
In Stock (Only 1 left) | ||
101 | SEAL | $39.15 |
Out of Stock | ||
102 | SPRING | $23.20 |
Out of Stock | ||
103 | SHAFT | $457.67 |
Out of Stock | ||
105A | SPLINE ANVIL | $1,248.79 |
Out of Stock | ||
105B | 1 & 1/2" SQUARE DRIVE | $1,196.82 |
Out of Stock | ||
106A | PLUNGER IND | $37.14 |
In Stock (Only 9 left) | ||
107A | LOCK BUTTON | $35.74 |
In Stock (Only 9 left) | ||
109 | SPRING IND | $5.31 |
In Stock (Only 7 left) | ||
110 | SPRING IND | $7.08 |
In Stock (Only 7 left) | ||
113 | CLUTCH HOUSING | $1,472.19 |
Out of Stock | ||
114 | BUSHING | $403.16 |
Out of Stock | ||
115 | OIL SEAL | $29.56 |
Out of Stock | ||
117 | PIPE PLUG | $2.54 |
Out of Stock | ||
118 | GASKET | $10.27 |
Out of Stock | ||
120 | RETAINING RING | $20.34 |
Out of Stock | ||
135 | DEFLECTOR | $65.30 |
Out of Stock | ||
150 | HANDLE | $68.67 |
Out of Stock | ||
151 | BAND | $50.08 |
Out of Stock | ||
152 | SCREW | $3.26 |
Out of Stock | ||
153 | WASHER | $2.36 |
Out of Stock | ||
Model #CP6120
BrandChicago Pneumatic
Tool Type1" Impact Wrench
Powered ByAir
Weight3 lbs. / 1.36 kg
We Service? Yes Submit Order
