Name: Chicago Pneumatic CP7250H
Brand: Chicago Pneumatic
SKU: CP7250H

Tools/Sander/Palm Sander/Chicago Pneumatic/CP7250H

Chicago Pneumatic CP7250H

Brand info

Palm Sander

Chicago Pneumatic CP7250H

Brand info

Palm Sander

This tool is unavailable for purchase, but replacement parts may be available below.

Air Palm Sander

This product has been discontinued with limited quantity available.

Replacement Parts

Details

Accessories

Warranty & Documentation

Ref #	Part	Price
1	REVERSE LEVER SCREW SP7255-001	$1.50
	Out of Stock
3	E-RING SP7255-003	$1.50
	Out of Stock
5	SPINDLE BUSHING SP7255-005	$3.71
	Out of Stock
6	FIXED WASHER SP7255-006	$1.85
	Out of Stock
9	RATCHET PAWL A SP7255-009	$18.17
	Out of Stock
10	RATCHET PAWL B SP7255-010	$20.04
	Out of Stock
11	WASHER SP7255-011	$1.50
	Out of Stock
12	SPRING SP7255-012	$1.50
	Out of Stock
13	REVERSE CAM SP7255-013	$17.80
	Out of Stock
14	YOKE SP7255-014	$19.66
	Out of Stock
15	NEEDLE ROLLER SP7255-015	$1.50
	Out of Stock
16	COILED SPRING SP7255-016	$2.59
	Out of Stock
17	PIVOT PAWL SP7255-017	$3.71
	Out of Stock
18	HOUSING SP7255-018	$9.27
	Out of Stock
19	CRANK SHAFT BAR SP7255-019	$16.32
	Out of Stock
20	DRIVE BUSHING SP7255-020	$4.81
	Out of Stock
21	PLANET CAGE SP7255-021	$13.36
	Out of Stock
22	IDLER GEAR SP7255-022	$2.59
	Out of Stock
23	COUPLING NUT SP7255-023	$17.80
	Out of Stock
24	INTERNAL GEAR SP7255-024	$17.43
	Out of Stock
25	LOCK WASHER SP7255-025	$1.50
	Out of Stock
26	BALL BEARING SP7255-026	$8.53
	Out of Stock
27	FRONT END PLATE SP7255-027	$7.78
	Out of Stock
28	ROTOR SP7255-028	$26.72
	Out of Stock
29	ROTOR BLADE (SINGLE) SP7255-029	$1.50
	Out of Stock
30	CYLINDER SP7255-030	$11.87
	Out of Stock
31	SPRING PIN SP7255-031	$1.50
	Out of Stock
32	REAR END PLATE SP7255-032	$8.53
	Out of Stock
33	BALL BEARING SP7255-033	$8.90
	Out of Stock
34	MOTOR HOUSING SP7255-034	$29.68
	Out of Stock
35	REGULATOR BALL SP7255-035	$3.34
	Out of Stock
36	O-RING SP7255-036	$1.50
	Out of Stock
37	SPRING PIN SP7255-037	$1.50
	Out of Stock
38	VALVE SPRING SP7255-038	$1.50
	Out of Stock
39	THROTTLE VALVE SP7255-039	$1.50
	Out of Stock
40	O-RING SP7255-040	$1.50
	Out of Stock
41	THROTTLE PLUNGER SP7255-041	$1.50
	Out of Stock
42	O-RING SP7255-042	$1.50
	Out of Stock
43	O-RING SP7255-043	$1.50
	Out of Stock
44	AIR REGULATOR SP7255-044	$11.12
	Out of Stock
45	SPRING PIN SP7255-045	$1.50
	Out of Stock
46	THROTTLE LEVER SP7255-046	$10.02
	Out of Stock
47	SPRING PIN SP7255-047	$1.50
	Out of Stock
48	SPONGE SP7255-048	$1.50
	Out of Stock
49	O-RING SP7255-049	$1.50
	Out of Stock
50	EXHAUST DEFLECTOR SP7255-050	$2.96
	Out of Stock
51	O-RING SP7255-051	$1.50
	Out of Stock
52	SWIVEL INLET SP7255-052	$28.19
	Out of Stock
53	BODY COVER SP7255-053	$16.70
	Out of Stock
54	SPRING SP7255-054	$1.50
	Out of Stock
55	PIN SP7255-055	$1.50
	Out of Stock
62	SPINDLE SP7250H-62	$50.48
	Out of Stock

Model #CP7250H

BrandChicago Pneumatic

Tool TypePalm Sander

Powered ByAir

Weight2 lbs. / 0.91 kg

We Service?
Yes
Submit Order

Astro Pneumatic AP4608

6" PSA PAD

$19.60

In Stock (Only 8 left)

Astro Pneumatic AP4606

6" VELCRO PAD

$23.63

In Stock (Only 6 left)

Astro Pneumatic AP4508

6" PSA PAD

$26.86

Out of Stock

Astro Pneumatic AP4606H

6" VELCRO PAD w/VACUUM HOLES

$24.62

In Stock

Astro Pneumatic AP4608H

6" PSA PAD w/VACUUM HOLES

$20.76

In Stock (Only 3 left)

Ingersoll-Rand IRVPAD-6

6" PSA SANDING PAD w/HOLES

$28.66

Out of Stock

Ingersoll-Rand IRVPAD-6HL

6" VELCRO PAD w/VACUUM HOLES

$38.00

Out of Stock

Chicago Pneumatic CPKF130128

PAD 6" PSA (M) - CLOTH FACE

$33.99

Out of Stock

Chicago Pneumatic CPKF130149

PAD 5" PSA (M)

$37.28

Out of Stock

Ingersoll-Rand IR9860

6" SANDING PAD

Warranty

Power Tool Repair is authorized to repair this tool under warranty.

Warranty Duration: 1 Year

Documentation

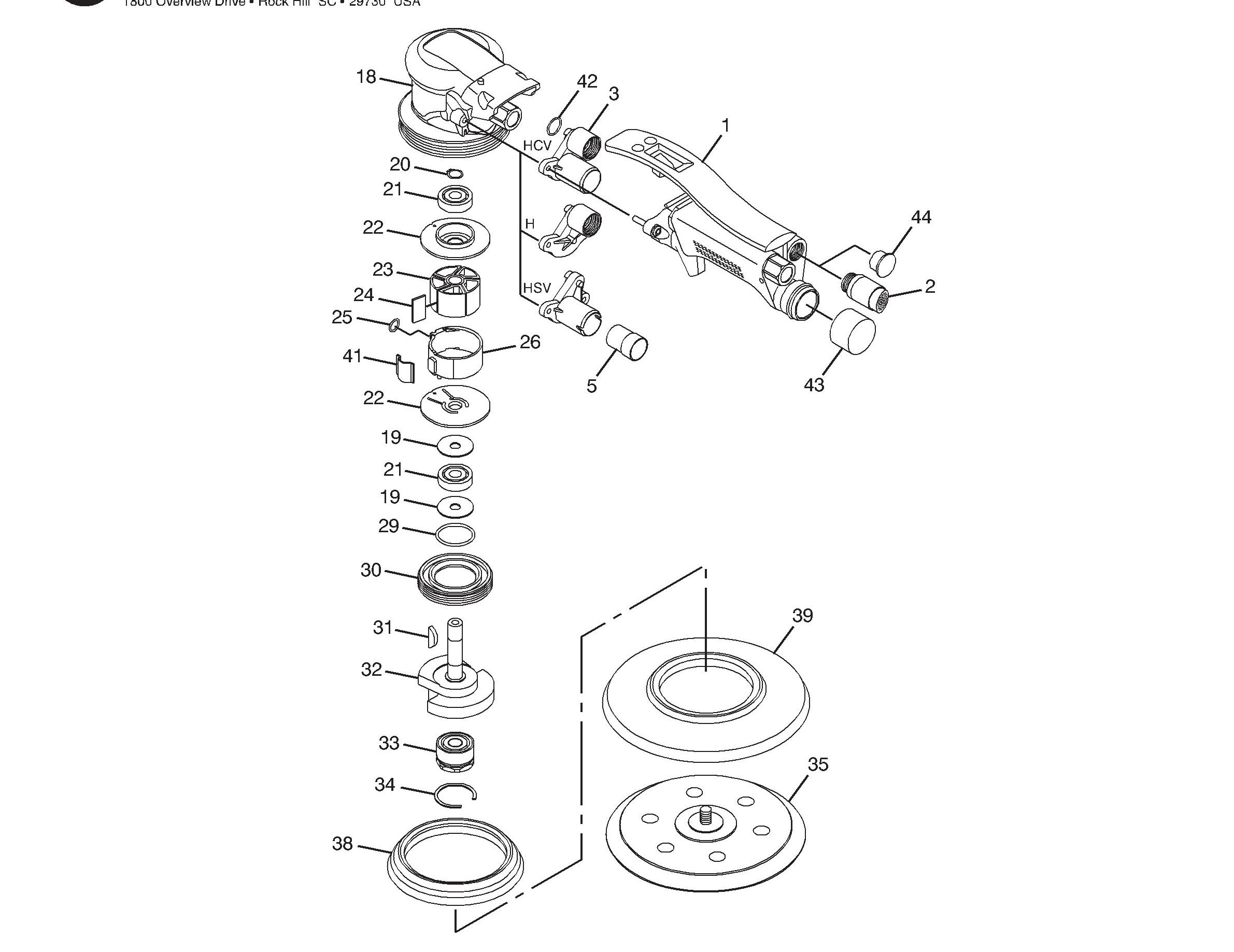

Breakdown

Replacement Parts

Ref #	Part	Price
1	REVERSE LEVER SCREW SP7255-001	$1.50
	Out of Stock
3	E-RING SP7255-003	$1.50
	Out of Stock
5	SPINDLE BUSHING SP7255-005	$3.71
	Out of Stock
6	FIXED WASHER SP7255-006	$1.85
	Out of Stock
9	RATCHET PAWL A SP7255-009	$18.17
	Out of Stock
10	RATCHET PAWL B SP7255-010	$20.04
	Out of Stock
11	WASHER SP7255-011	$1.50
	Out of Stock
12	SPRING SP7255-012	$1.50
	Out of Stock
13	REVERSE CAM SP7255-013	$17.80
	Out of Stock
14	YOKE SP7255-014	$19.66
	Out of Stock
15	NEEDLE ROLLER SP7255-015	$1.50
	Out of Stock
16	COILED SPRING SP7255-016	$2.59
	Out of Stock
17	PIVOT PAWL SP7255-017	$3.71
	Out of Stock
18	HOUSING SP7255-018	$9.27
	Out of Stock
19	CRANK SHAFT BAR SP7255-019	$16.32
	Out of Stock
20	DRIVE BUSHING SP7255-020	$4.81
	Out of Stock
21	PLANET CAGE SP7255-021	$13.36
	Out of Stock
22	IDLER GEAR SP7255-022	$2.59
	Out of Stock
23	COUPLING NUT SP7255-023	$17.80
	Out of Stock
24	INTERNAL GEAR SP7255-024	$17.43
	Out of Stock
25	LOCK WASHER SP7255-025	$1.50
	Out of Stock
26	BALL BEARING SP7255-026	$8.53
	Out of Stock
27	FRONT END PLATE SP7255-027	$7.78
	Out of Stock
28	ROTOR SP7255-028	$26.72
	Out of Stock
29	ROTOR BLADE (SINGLE) SP7255-029	$1.50
	Out of Stock
30	CYLINDER SP7255-030	$11.87
	Out of Stock
31	SPRING PIN SP7255-031	$1.50
	Out of Stock
32	REAR END PLATE SP7255-032	$8.53
	Out of Stock
33	BALL BEARING SP7255-033	$8.90
	Out of Stock
34	MOTOR HOUSING SP7255-034	$29.68
	Out of Stock
35	REGULATOR BALL SP7255-035	$3.34
	Out of Stock
36	O-RING SP7255-036	$1.50
	Out of Stock
37	SPRING PIN SP7255-037	$1.50
	Out of Stock
38	VALVE SPRING SP7255-038	$1.50
	Out of Stock
39	THROTTLE VALVE SP7255-039	$1.50
	Out of Stock
40	O-RING SP7255-040	$1.50
	Out of Stock
41	THROTTLE PLUNGER SP7255-041	$1.50
	Out of Stock
42	O-RING SP7255-042	$1.50
	Out of Stock
43	O-RING SP7255-043	$1.50
	Out of Stock
44	AIR REGULATOR SP7255-044	$11.12
	Out of Stock
45	SPRING PIN SP7255-045	$1.50
	Out of Stock
46	THROTTLE LEVER SP7255-046	$10.02
	Out of Stock
47	SPRING PIN SP7255-047	$1.50
	Out of Stock
48	SPONGE SP7255-048	$1.50
	Out of Stock
49	O-RING SP7255-049	$1.50
	Out of Stock
50	EXHAUST DEFLECTOR SP7255-050	$2.96
	Out of Stock
51	O-RING SP7255-051	$1.50
	Out of Stock
52	SWIVEL INLET SP7255-052	$28.19
	Out of Stock
53	BODY COVER SP7255-053	$16.70
	Out of Stock
54	SPRING SP7255-054	$1.50
	Out of Stock
55	PIN SP7255-055	$1.50
	Out of Stock
62	SPINDLE SP7250H-62	$50.48
	Out of Stock
