Chicago Pneumatic CP791
Chicago Pneumatic CP791
This tool is unavailable for purchase, but replacement parts may be available below.
1" Drive Air Impact Wrench

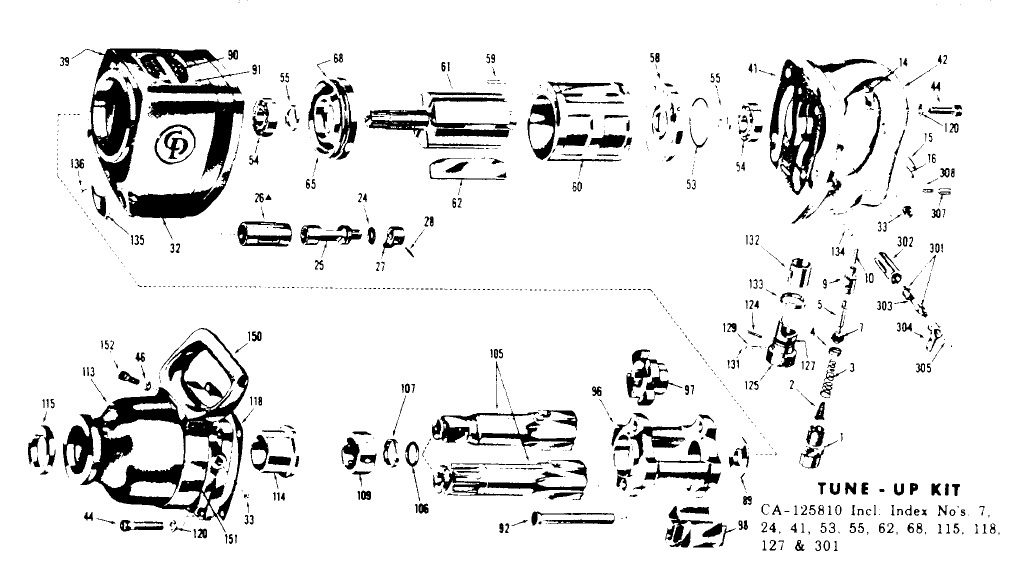

Replacement Parts
Details
Accessories
Warranty & Documentation
| Ref # | Part | Price |
|---|---|---|
1 | THROTTLE CAP | $44.96 |
Out of Stock | ||
2 | SCREEN | $26.50 |
Out of Stock | ||
3 | SPRING IND | $9.77 |
In Stock (Only 1 left) | ||
4 | O-RING RETAINER | $9.45 |
Out of Stock | ||
5 | VALVE ASSY | $114.70 |
Out of Stock | ||
7 | O-RING | $2.36 |
Out of Stock | ||
9 | VALVE BUSHING | $65.86 |
Out of Stock | ||
10 | PIN | $5.50 |
In Stock (Only 1 left) | ||
14 | TRIGGER | $58.23 |
Out of Stock | ||
15 | TRIGGER PIN | $4.86 |
Out of Stock | ||
16 | PIN IND | $3.52 |
In Stock (Only 1 left) | ||
24 | O-RING | $3.24 |
Out of Stock | ||
26 | MOTOR HOUSING - BUSHING | $357.58 |
Out of Stock | ||
27 | LEVER | $26.00 |
In Stock (Only 2 left) | ||
28 | PIN | $1.80 |
Out of Stock | ||
39 | HELICOIL INSERT | $12.34 |
Out of Stock | ||
41 | GASKET | $5.50 |
In Stock (Only 3 left) | ||
44 | CAP SCREW | $3.55 |
Out of Stock | ||
46 | WASHER | $2.36 |
Out of Stock | ||
53 | RUBBER O-RING | $3.72 |
In Stock (Only 4 left) | ||
54 | BEARING | $43.87 |
Out of Stock | ||
55 | OIL SEAL | $11.39 |
In Stock (Only 1 left) | ||
58 | UPPER END PLATE | $159.72 |
Out of Stock | ||
59 | ROLL PIN (MODEL A) | $7.35 |
Out of Stock | ||
68 | O-RING | $5.67 |
Out of Stock | ||
91 | SCREW | $4.90 |
Out of Stock | ||
92 | CLUTCH DOG PIN | $26.01 |
Out of Stock | ||
96 | CAGE | $277.98 |
Out of Stock | ||
98 | DOG | $100.78 |
In Stock (Only 2 left) | ||
105 | ANVIL - SHORT SQUARE DRIVE | $232.46 |
Out of Stock | ||
105 | ANVIL - SHORT SPLINE | $512.06 |
Out of Stock | ||
106 | RUBBER O-RING | $1.97 |
Out of Stock | ||
106 | RUBBER O-RING | $30.60 |
Out of Stock | ||
107 | SQUARE DRIVE RETAINER CLIP | $3.24 |
Out of Stock | ||
107 | FRICTION RING - #5 SPLINE DRIVE | $18.57 |
Out of Stock | ||
109 | BUSHING | $31.91 |
Out of Stock | ||
114 | BUSHING | $97.55 |
Out of Stock | ||
115 | SEAL | $8.30 |
Out of Stock | ||
120 | LOCKWASHER | $1.80 |
Out of Stock | ||
127 | RUBBER O-RING | $2.77 |
Out of Stock | ||
136 | SCREW, SELF TAPPING | $3.23 |
Out of Stock | ||
150 | HANDLE | $68.67 |
Out of Stock | ||
152 | SCREW | $3.26 |
Out of Stock | ||
301 | O-RING | $3.86 |
Out of Stock | ||
Model #CP791
BrandChicago Pneumatic
Tool Type1" Impact Wrench
Powered ByAir
Weight3 lbs. / 1.36 kg
We Service? Yes Submit Order
No accessories found for this tool model.
Warranty
Warranty Duration: 1 Year
