Cornwell Tools CAT5380
Cornwell Tools CAT5380
This tool is unavailable for purchase, but replacement parts may be available below.

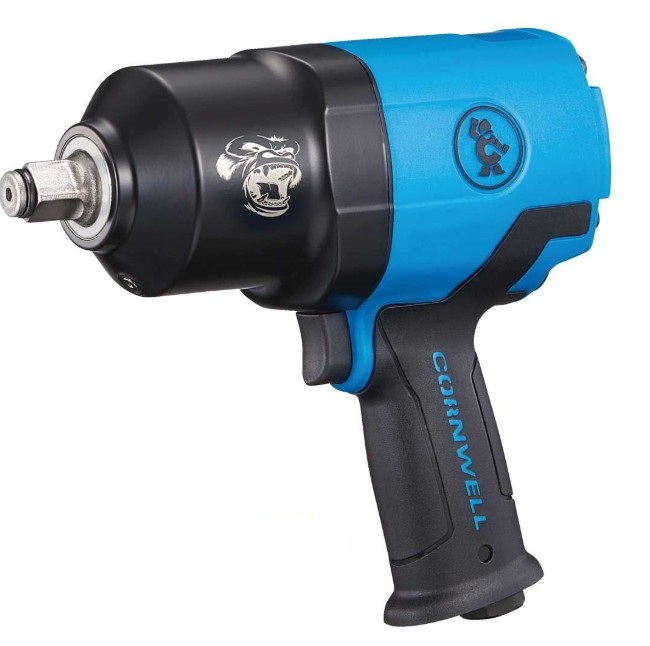

1/2" Drive Air Impact Wrench

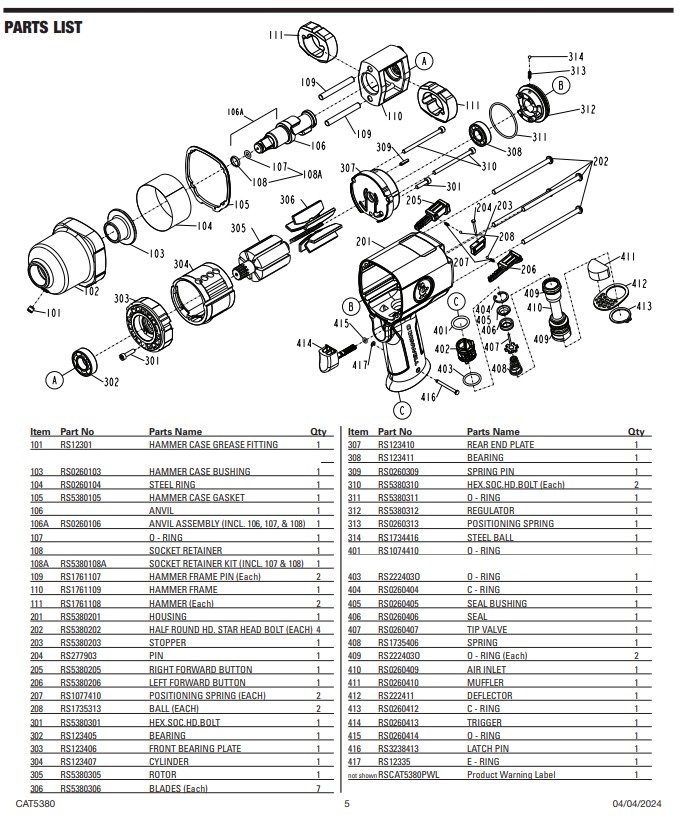

Replacement Parts
Details
Accessories
Warranty & Documentation
| Ref # | Part | Price |
|---|---|---|
101 | HAMMER CASE GREASE FITTING | $4.00 |
Out of Stock | ||
102 | HAMMER CASE | $37.28 |
In Stock (Only 4 left) | ||
103 | HAMMER CASE BUSHING | $18.20 |
Out of Stock | ||
104 | STEEL RING/SHIELD | $4.00 |
Out of Stock | ||
105 | GASKET | $4.00 |
In Stock (Only 5 left) | ||
106A | ANVIL ASSY (INCL. 418 & 419) | $92.28 |
Out of Stock | ||
108 | SOCKET RETAINING KIT | $4.00 |
Out of Stock | ||
109 | HAMMER FRAME PIN | $4.00 |
Out of Stock | ||
110 | HAMMER FRAME | $77.28 |
Out of Stock | ||
111 | HAMMER (1230C-0070001-1) | $76.14 |
In Stock (Only 2 left) | ||
201 | HOUSING | $49.46 |
In Stock (Only 1 left) | ||
203 | STOPPER | $4.00 |
In Stock (Only 5 left) | ||
204 | STOPPER PIN | $4.00 |
In Stock (Only 8 left) | ||
205 | RIGHT FORWARD BUTTON | $4.00 |
In Stock (Only 5 left) | ||
206 | LEFT FORWARD BUTTON | $4.00 |
In Stock (Only 5 left) | ||
207 | POSITIONING SPRING | $4.00 |
In Stock (Only 6 left) | ||
208 | BALL | $4.00 |
Out of Stock | ||
301 | HEX BOLT | $4.00 |
Out of Stock | ||
303 | FRONT END PLATE/FRONT BEARING PLATE | $29.80 |
In Stock (Only 3 left) | ||
304 | CYLINDER | $50.46 |
In Stock (Only 6 left) | ||
305 | ROTOR | $78.60 |
Out of Stock | ||
306 | SINGLE BLADE | $4.00 |
In Stock (Only 5 left) | ||
307 | REAR END PLATE | $28.14 |
In Stock | ||
309 | SPRING PIN | $4.00 |
Out of Stock | ||
313 | DETENT SPRING/POSITIONING SPRING | $4.00 |
In Stock (Only 5 left) | ||
314 | STEEL BALL | $4.00 |
Out of Stock | ||
401 | O-RING | $4.00 |
Out of Stock | ||
402 | REVERSE VALVE | $4.00 |
In Stock (Only 8 left) | ||
404 | SNAP RING/C-RING | $4.00 |
In Stock | ||
405 | SEAL BUSHING | $4.00 |
In Stock (Only 5 left) | ||
406 | SEAL | $4.00 |
In Stock (Only 7 left) | ||
407 | TIP VALVE | $4.00 |
Out of Stock | ||
408 | SPRING | $4.00 |
Out of Stock | ||
410 | AIR INLET | $21.80 |
In Stock | ||
411 | MUFFLER | $4.00 |
Out of Stock | ||
412 | DEFLECTOR | $4.00 |
In Stock (Only 3 left) | ||
413 | SNAP RING/C-RING | $4.00 |
In Stock (Only 2 left) | ||
414 | TRIGGER (DOES NOT INCL. O-RING) | $4.00 |
In Stock | ||
415 | O-RING | $4.00 |
In Stock | ||
417 | E-RING | $4.00 |
Out of Stock | ||
312 | REGULATOR | $11.66 |
In Stock (Only 2 left) | ||
Model #CAT5380
BrandCornwell Tools
Tool Type1/2" Impact Wrench
Powered ByAir
Weight4.5 lbs. / 2.04 kg
We Service? Yes Submit Order
