Cornwell Tools CAT6234
Cornwell Tools CAT6234
This tool is unavailable for purchase, but replacement parts may be available below.
3/4" Drive Air Impact Wrench

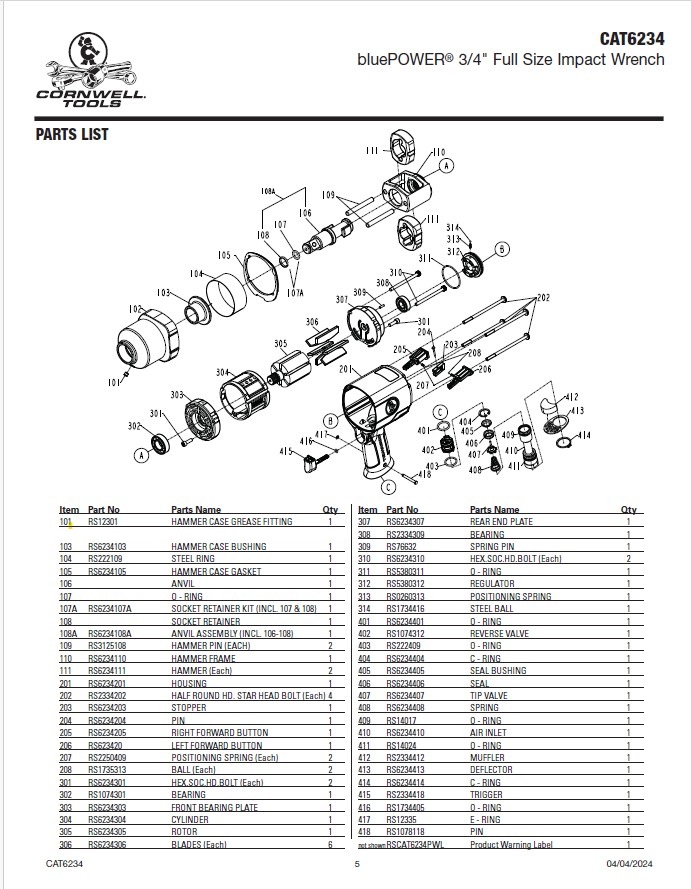

Replacement Parts
Details
Accessories
Warranty & Documentation
| Ref # | Part | Price |
|---|---|---|
101 | HAMMER CASE GREASE FITTING | $5.16 |
In Stock (Only 7 left) | ||
102 | HAMMER CASE | $59.36 |
In Stock (Only 1 left) | ||
103 | HAMMER CASE BUSHING | $27.78 |
Out of Stock | ||
104 | STEEL RING | $4.02 |
Out of Stock | ||
105 | 3/4" ANVIL | $143.94 |
Out of Stock | ||
107 | SOCKET RETAINING KIT | $4.46 |
Out of Stock | ||
108 | 3/4" ANVIL ASSY | $181.82 |
Out of Stock | ||
109 | HAMMER PIN | $4.74 |
In Stock (Only 2 left) | ||
110 | HAMMER FRAME | $146.98 |
Out of Stock | ||
111 | HAMMER | $77.52 |
Out of Stock | ||
201 | HOUSING | $57.24 |
Out of Stock | ||
202 | STAR HEAD BOLT | $4.02 |
Out of Stock | ||
203 | STOPPER | $4.00 |
In Stock (Only 4 left) | ||
204 | PIN | $4.00 |
In Stock (Only 5 left) | ||
205 | RIGHT BUTTON | $4.00 |
In Stock (Only 4 left) | ||
206 | LEFT BUTTON | $4.00 |
In Stock (Only 6 left) | ||
207 | POSITIONING SPRING | $4.00 |
Out of Stock | ||
208 | BALL | $4.00 |
Out of Stock | ||
301 | HEX BOLT | $4.00 |
Out of Stock | ||
302 | BEARING | $22.82 |
Out of Stock | ||
303 | FRONT BEARING PLATE | $45.72 |
Out of Stock | ||
304 | CYLINDER | $76.32 |
Out of Stock | ||
306 | SINGLE BLADE | $4.00 |
In Stock | ||
307 | REAR END PLATE | $49.96 |
Out of Stock | ||
309 | BALL BEARING | $12.02 |
Out of Stock | ||
310 | HEX BOLT | $4.00 |
Out of Stock | ||
311 | O-RING | $4.00 |
Out of Stock | ||
312 | REGULATOR | $13.22 |
In Stock (Only 3 left) | ||
313 | DETENT SPRING/POSITIONING SPRING | $4.00 |
In Stock (Only 4 left) | ||
314 | STEEL BALL | $4.00 |
Out of Stock | ||
401 | O-RING | $4.00 |
Out of Stock | ||
402 | REVERSE VALVE | $26.86 |
Out of Stock | ||
403 | O-RING | $4.46 |
In Stock (Only 2 left) | ||
404 | C-RING | $4.00 |
Out of Stock | ||
405 | SEAL BUSHING | $4.00 |
In Stock (Only 1 left) | ||
406 | SEAL | $4.00 |
In Stock (Only 1 left) | ||
408 | SPRING | $4.00 |
Out of Stock | ||
407 | TIP VALVE | $4.74 |
Out of Stock | ||
409 | O-RING | $4.40 |
Out of Stock | ||
410 | AIR INLET | $29.68 |
In Stock (Only 1 left) | ||
411 | O-RING | $4.40 |
Out of Stock | ||
412 | MUFFLER | $4.00 |
Out of Stock | ||
413 | DEFLECTOR | $4.00 |
Out of Stock | ||
414 | C-RING | $4.00 |
Out of Stock | ||
415 | TRIGGER | $4.00 |
In Stock (Only 2 left) | ||
416 | O-RING | $4.00 |
Out of Stock | ||
417 | E-RING | $4.00 |
Out of Stock | ||
Model #CAT6234
BrandCornwell Tools
Tool Type3/4" Impact Wrench
Powered ByAir
Weight7.2 lbs. / 3.27 kg
We Service? Yes Submit Order
