Ingersoll-Rand IR7802RA


Ingersoll-Rand IR7802RA

$273.00

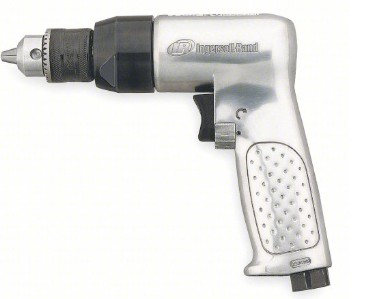

3/8" Reversible Air Drill
Condition:
In Stock (Only 1 left)
Qty:

Replacement Parts

Details

Accessories

Warranty & Documentation

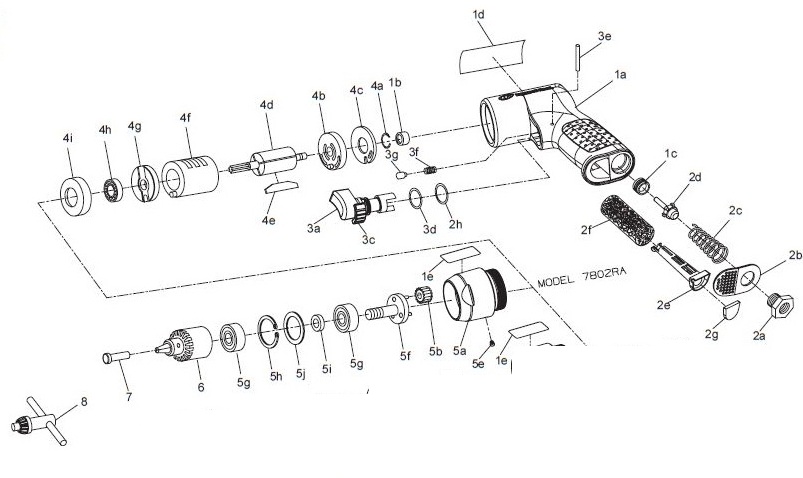

Line Drawing
Ref #PartPrice
*
3/8" REVERSIBLE AIR DRILL
$273.00
In Stock (Only 1 left)
1
HOUSING ASSY
$76.72
Out of Stock
1C
THROTTLE VALVE SEAT
$3.32
In Stock (Only 8 left)
2
INLET/EXHAUST ASSY
$9.51
Out of Stock
2D
THROTTLE VALVE
$5.96
Out of Stock
3
TRIGGER ASSY
$15.36
In Stock (Only 2 left)
4
MOTOR ASSY
$40.57
Out of Stock
4D
ROTOR
$16.25
In Stock (Only 1 left)
4E
ROTOR BLADES (SET OF 6)
$9.51
In Stock (Only 3 left)
4F
CYLINDER & PIN
$9.51
Out of Stock
4G
FRONT END PLATE
$5.41
Out of Stock
4H
FRONT ROTOR BEARING
$7.07
Out of Stock
4I
BEARING SUPPORT
$9.23
In Stock (Only 2 left)
5
GEAR CASE
$51.62
Out of Stock
5B
PLANET GEARS (SET OF 3)
$7.07
Out of Stock
5D
PLANET GEAR SET
$2.98
Out of Stock
5F
SPINDLE
$12.38
Out of Stock
5G
BEARING
$5.41
Out of Stock
6
CHUCK 3/8" CAP
$37.70
Out of Stock
6
3/8" KEYLESS CHUCK (PLASTIC GRIP)
$28.30
Out of Stock
7
CHUCK SCREW
$3.10
In Stock (Only 1 left)
8
CHUCK KEY 1/4"
$8.73
Out of Stock
9
HANDLE ASSY
$16.25
Out of Stock
Model #IR7802RA
BrandIngersoll-Rand
Tool Type3/8" Drill
Powered ByAir
Weight2 lbs. / 0.91 kg
We Service?
Yes

Warranty

Power Tool Repair is authorized to repair this tool under warranty.

Warranty Duration: 1 Year

Documentation

Breakdown

Replacement Parts
Line Drawing
Ref #PartPrice
*
3/8" REVERSIBLE AIR DRILL
$273.00
In Stock (Only 1 left)
1
HOUSING ASSY
$76.72
Out of Stock
1C
THROTTLE VALVE SEAT
$3.32
In Stock (Only 8 left)
2
INLET/EXHAUST ASSY
$9.51
Out of Stock
2D
THROTTLE VALVE
$5.96
Out of Stock
3
TRIGGER ASSY
$15.36
In Stock (Only 2 left)
4
MOTOR ASSY
$40.57
Out of Stock
4D
ROTOR
$16.25
In Stock (Only 1 left)
4E
ROTOR BLADES (SET OF 6)
$9.51
In Stock (Only 3 left)
4F
CYLINDER & PIN
$9.51
Out of Stock
4G
FRONT END PLATE
$5.41
Out of Stock
4H
FRONT ROTOR BEARING
$7.07
Out of Stock
4I
BEARING SUPPORT
$9.23
In Stock (Only 2 left)
5
GEAR CASE
$51.62
Out of Stock
5B
PLANET GEARS (SET OF 3)
$7.07
Out of Stock
5D
PLANET GEAR SET
$2.98
Out of Stock
5F
SPINDLE
$12.38
Out of Stock
5G
BEARING
$5.41
Out of Stock
6
CHUCK 3/8" CAP
$37.70
Out of Stock
6
3/8" KEYLESS CHUCK (PLASTIC GRIP)
$28.30
Out of Stock
7
CHUCK SCREW
$3.10
In Stock (Only 1 left)
8
CHUCK KEY 1/4"
$8.73
Out of Stock
9
HANDLE ASSY
$16.25
Out of Stock
Details
Model #IR7802RA
BrandIngersoll-Rand
Tool Type3/8" Drill
Powered ByAir
Weight2 lbs. / 0.91 kg
We Service?
Yes
Warranty & Documentation

Warranty

Power Tool Repair is authorized to repair this tool under warranty.

Warranty Duration: 1 Year

Documentation

Breakdown
